BI-TORQ 1/2" 3-Way T-Port Brass NPT Ball Valve W/Dbl. Acting Pneum. Actuator IP-3WT-05-32-DA
BI-TORQ 1/2"" 3-Way T-Port Brass NPT Ball Valve W/Dbl. Acting Pneum. Actuator IP-3WT-05-32-DA
1/2" 3-Way T-Port Brass NPT Ball Valve W/Dbl. Acting Pneum. Actuator

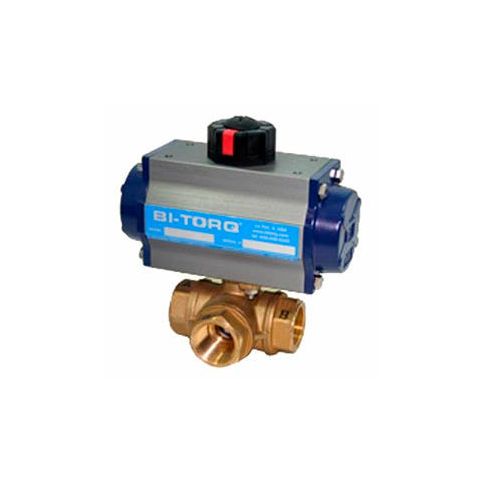

The BI-TORQ IP-3WT-05-32-DA series 1/2" NPT (threaded) ball valve features a 3-way (multi-port) brass ball valve with an T-port configuration. The valve has a pressure rating to 600 PSI and a temperature rating of +297°F. TFE seats and Viton seals are compatible with a wide range of industries and media type. This version comes complete with a PN-32-DA double acting (air-to-open, air-to-close) pneumatic actuator sized for 80PSI air supply.
The BI-TORQ IP-3WT-05-32-DA series 1/2" NPT (threaded) ball valve features a 3-way (multi-port) brass ball valve with an T-port configuration. The valve has a pressure rating to 600 PSI and a temperature rating of +297°F. TFE seats and Viton seals are compatible with a wide range of industries and media type. This version comes complete with a PN-32-DA double acting (air-to-open, air-to-close) pneumatic actuator sized for 80PSI air supply.
Product Specifications
- LENGTH INCHES4-21/64
- WIDTH INCHES1.77
- HEIGHT INCHES3-31/32
- BRANDBi-Torq
- PACKAGE QUANTITY1
- TYPE OF ACTUATIONDouble-Acting
- MANUFACTURER PART NUMBERIP-3WT-05-32-DA
- END CONNECTIONSNPT
- CONSTRUCTIONValve: Brass; Actuator: Aluminum
- VALVE TYPEBall
- # OF PORTS3-Way
- ACTUATORPneumatic
- ACTUATED OR MANUALActuated
- VALVE SIZE1/2"
- BODY MATERIALBRASS
Additional Information
- UNSPSC: 40141607
- Brand: Avk Carbo-Bond/Bitorq Valve Automation
- Package Quantity: 1
- Country of Origin: IT
- FOB Origin: IL
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 2.20
Product info last updated on November 27, 2024 10:25pm UTC
Category: Valves
