BI-TORQ 1-1/4" SS Split Body ANSI 150# Flanged Ball Valve W/Spring Ret. Pneum. Actuator IS-2PF-12-85-SR
BI-TORQ 1-1/4"" SS Split Body ANSI 150# Flanged Ball Valve W/Spring Ret. Pneum. Actuator IS-2PF-12-85-SR
1-1/4" SS Split Body ANSI 150# Flanged Ball Valve W/Spring Ret. Pneum. Actuator

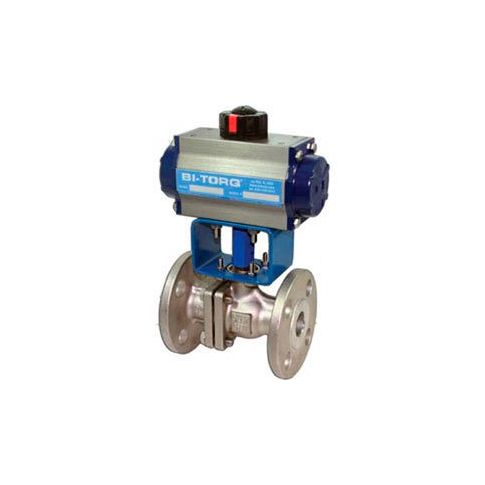

The BI-TORQ IS-2PF-12-75-SR is a pneumatically-actuated 1-1/4" full port SS ball valve with 150# ANSI standard flanged ends. The Class 150 valve has a temperature rating from 0°F to +450°F. TFE seats and TFE seals are compatible with a wide range of industries and media type. The split body design allows for easy maintenance and repair. This version comes complete with a PN-75-SR spring return (air to open, spring to close) anodized aluminum pneumatic actuator sized for 80PSI air supply.
The BI-TORQ IS-2PF-12-75-SR is a pneumatically-actuated 1-1/4" full port SS ball valve with 150# ANSI standard flanged ends. The Class 150 valve has a temperature rating from 0°F to +450°F. TFE seats and TFE seals are compatible with a wide range of industries and media type. The split body design allows for easy maintenance and repair. This version comes complete with a PN-75-SR spring return (air to open, spring to close) anodized aluminum pneumatic actuator sized for 80PSI air supply.
Product Specifications
- LENGTH INCHES7
- WIDTH INCHES7
- HEIGHT INCHES14-31/32
- BRANDBi-Torq
- PACKAGE QUANTITY1
- TYPE OF ACTUATIONSpring-Return
- DIAMETER INCHES2-1/2
- MANUFACTURER PART NUMBERIS-2PF-12-75-SR
- CONSTRUCTIONValve: Stainless Steel; Actuator: Aluminum
- END CONNECTIONSFlanged
- # OF PORTS2-Way
- VALVE TYPEBall
- ACTUATORPneumatic
- ACTUATED OR MANUALActuated
- VALVE SIZE1-1/4"
- BODY MATERIALSS
Additional Information
- UNSPSC: 40141607
- Brand: Avk Carbo-Bond/Bitorq Valve Automation
- Package Quantity: 1
- Country of Origin: TW
- FOB Origin: IL
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 24.50
Product info last updated on November 27, 2024 10:25pm UTC
Category: Valves
