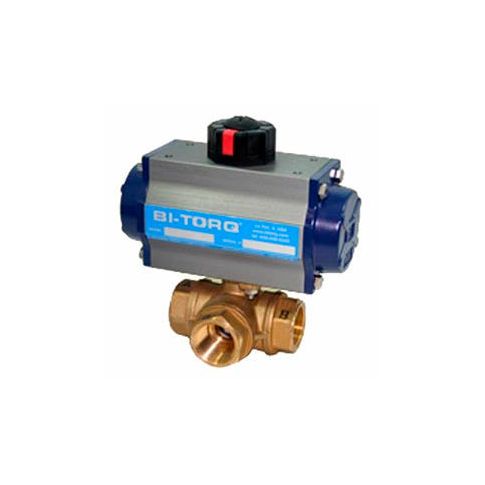

BI-TORQ 3/4" 3-Way T-Port Brass NPT Ball Valve W/Spring Ret. Pneum. Actuator IP-3WT-07-52-SR
BI-TORQ 3/4"" 3-Way T-Port Brass NPT Ball Valve W/Spring Ret. Pneum. Actuator IP-3WT-07-52-SR
3/4" 3-Way T-Port Brass NPT Ball Valve W/Spring Ret. Pneum. Actuator
The BI-TORQ IP-3WT-07-52-SR series 3/4" NPT (threaded) ball valve features a 3-way (multi-port) brass ball valve with an T-port configuration. The valve has a pressure rating to 600 PSI and a temperature rating of +297°F. TFE seats and Viton seals are compatible with a wide range of industries and media type. This version comes complete with a PN-52-SR spring return (air-to-open, spring to fail close) pneumatic actuator sized for 80PSI air supply.
The BI-TORQ IP-3WT-07-52-SR series 3/4" NPT (threaded) ball valve features a 3-way (multi-port) brass ball valve with an T-port configuration. The valve has a pressure rating to 600 PSI and a temperature rating of +297°F. TFE seats and Viton seals are compatible with a wide range of industries and media type. This version comes complete with a PN-52-SR spring return (air-to-open, spring to fail close) pneumatic actuator sized for 80PSI air supply.
Product Specifications
- LENGTH INCHES5-1/2
- WIDTH INCHES2.8
- HEIGHT INCHES4-1/2
- BRANDBi-Torq
- PACKAGE QUANTITY1
- TYPE OF ACTUATIONSpring-Return
- MANUFACTURER PART NUMBERIP-3WT-07-52-SR
- END CONNECTIONSNPT
- CONSTRUCTIONValve: Brass; Actuator: Aluminum
- VALVE TYPEBall
- # OF PORTS3-Way
- ACTUATORPneumatic
- ACTUATED OR MANUALActuated
- VALVE SIZE3/4"
- BODY MATERIALBRASS
Additional Information
- UNSPSC: 40141607
- Brand: Avk Carbo-Bond/Bitorq Valve Automation
- Package Quantity: 1
- Country of Origin: IT
- FOB Origin: IL
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 4.45
Product info last updated on August 26, 2024 2:21pm UTC
Category: Valves
