BI-TORQ 3" SS Split Body ANSI 150# Flanged Ball Valve W/Dbl. Acting Pneum. Actuator IS-2PF-30-85-DA
BI-TORQ 3"" SS Split Body ANSI 150# Flanged Ball Valve W/Dbl. Acting Pneum. Actuator IS-2PF-30-85-DA
3" SS Split Body ANSI 150# Flanged Ball Valve W/Dbl. Acting Pneum. Actuator

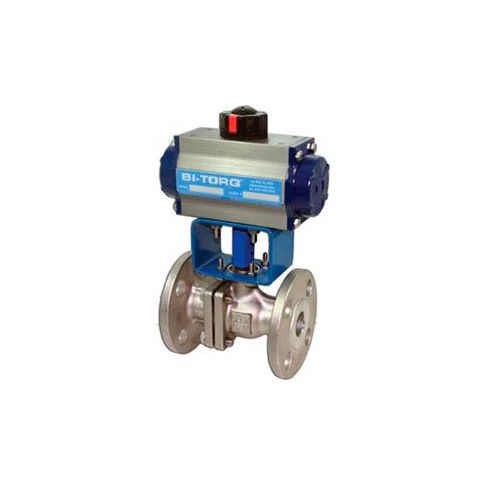

The BI-TORQ IS-2PF-30-85-DA is a pneumatically-actuated 3" full port SS ball valve with 150# ANSI standard flanged ends. The Class 150 valve has a temperature rating from 0°F to +450°F. TFE seats and TFE seals are compatible with a wide range of industries and media type. The split body design allows for easy maintenance and repair. This version comes complete with a PN-85-DA double acting (air to open, air to close) anodized aluminum pneumatic actuator sized for 80PSI air supply.
The BI-TORQ IS-2PF-30-85-DA is a pneumatically-actuated 3" full port SS ball valve with 150# ANSI standard flanged ends. The Class 150 valve has a temperature rating from 0°F to +450°F. TFE seats and TFE seals are compatible with a wide range of industries and media type. The split body design allows for easy maintenance and repair. This version comes complete with a PN-85-DA double acting (air to open, air to close) anodized aluminum pneumatic actuator sized for 80PSI air supply.
Product Specifications
- LENGTH INCHES7
- WIDTH INCHES7
- HEIGHT INCHES15-27/32
- BRANDBi-Torq
- PACKAGE QUANTITY1
- TYPE OF ACTUATIONDouble-Acting
- DIAMETER INCHES4
- MANUFACTURER PART NUMBERIS-2PF-30-85-DA
- END CONNECTIONSFlanged
- CONSTRUCTIONValve: Stainless Steel; Actuator: Aluminum
- VALVE TYPEBall
- # OF PORTS2-Way
- ACTUATORPneumatic
- ACTUATED OR MANUALActuated
- VALVE SIZE3"
- BODY MATERIALSS
Additional Information
- UNSPSC: 40141607
- Brand: Avk Carbo-Bond/Bitorq Valve Automation
- Package Quantity: 1
- Country of Origin: TW
- FOB Origin: IL
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 56.50
Product info last updated on May 9, 2024 3:19pm UTC
Category: Valves
