Cejn® Euro High Flow Interchange Safety Coupling 1/4" Body Size 1/2" Female NPT - Pkg Qty 10 10-320-2405
Cejn® Euro High Flow Interchange Safety Coupling 1/4"" Body Size 1/2"" Female NPT - Pkg Qty 10 10-320-2405

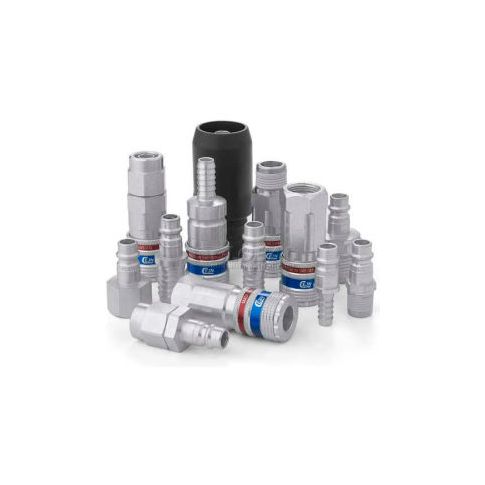

Cejn® 10-320-2405 eSafe Series 320 Safety Coupling, 1/2 Female NPT (European INTCH 1/4)
eSafe Series 320 offers a wide range of easy-to-grip couplings along with Stream-Line. Male threads on the couplings feature pre-applied thread sealant. eSafe Series 320 is a vented safety coupling that is disconnected in two stages in order to vent the coupling and minimize the risk of sudden component separation. The couplings are fully automatic to ensure quick and easy handling. eSafe Series 320 complies with ISO Standard 4414 and EN 983.
eSafe Series 320 offers a wide range of easy-to-grip couplings along with Stream-Line. Male threads on the couplings feature pre-applied thread sealant. eSafe Series 320 is a vented safety coupling that is disconnected in two stages in order to vent the coupling and minimize the risk of sudden component separation. The couplings are fully automatic to ensure quick and easy handling. eSafe Series 320 complies with ISO Standard 4414 and EN 983.
Product Specifications
- BRANDCejn®
- CONSTRUCTIONZinc Plated Steel/Brass
- TYPESafety Coupling
- CFM80.8
- CONNECTION FORCE86 N
- NOMINAL FLOW DIAMETER5/16"
- MINIMUM BURST PRESSURE2030
- TEMPERATURE RANGE-22° F to +212° F
- INTERCHANGEEuropean 1/4"
- CONNECTION CONFIGURATION1/2" Female NPT
- SERIESeSafe 320
- SEAL MATERIALNitrile Buna
- MAXIMUM OPERATING PSI230
Additional Information
- UNSPSC: 27131613
- Brand: Cejn Industrail Corp.
- Package Quantity: 10
- FOB Origin: IL
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 3.00
- Package Width: 1.50
- Package Height: 1.50
- Package Weight: 0.25
Product info last updated on August 26, 2024 2:21pm UTC
Category: Hoses and Connectors
