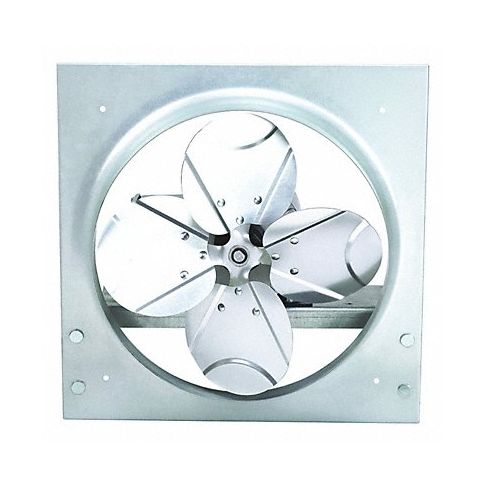

Exh/Sp Fan 12In Bl Alum 115/230V MPN:10E021

Technical Specifications

• Item Exhaust/Supply Fan
• Type Direct Drive Reversible
• Blade Dia. 12 in
• Exhaust/Supply CFM @ 0.000-In. SP 1526/1470
• Exhaust/Supply CFM @ 0.125-In. SP 1361/1343
• Exhaust/Supply CFM @ 0.250-In. SP 1178/1033
• Exhaust/Supply CFM @ 0.375-In. SP 636/742
• Exhaust/Supply Fan Item Reversible Exhaust/Supply Fan
• Max. Inlet Temp. (Deg. F) 104 Degrees F
• Drive Package With Motor Included No
• Max. Ambient Temp. (F) 104 Degrees F
• Speed 1
• Fan Voltage 115/230V AC
• Hz 60
• Phase 1
• Operating Amps 2.8/1.5
• Fan RPM 1755/1748
• Motor RPM 1755/1748
• Exhaust/Supply Fan Motor HP 1/4 hp
• Bearing Type Ball
• Motor Enclosure Totally Enclosed Air-Over
• Motor Insulation Class B
• Height (In.) 16 in
• Width (In.) 16 in
• Max. Depth (In.) 11 in
• Dia. Opening Required (In.) 14 in
• Mounting Position Vertical
• Frame Finish Galvanized
• Propeller Material Aluminum
• Number of Blades 4
• Shaft Dia. (In.) 1/2 in
• Agency Compliance UL and cUL Listed, AMCA
• Includes Reversing Switch
• Recommended Intake Guards 1WBT8
• Recommended Wall Collar 16D550
• Recommended Wall Housing 3FKF4

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 10E021
• MPN: 10E021

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414596590
• GDS Category Name: Axial Exhaust and Supply Fans with Motor
• GDS Family Name: Exhaust Fans
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101502
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Ventilation
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Air exhausters
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
