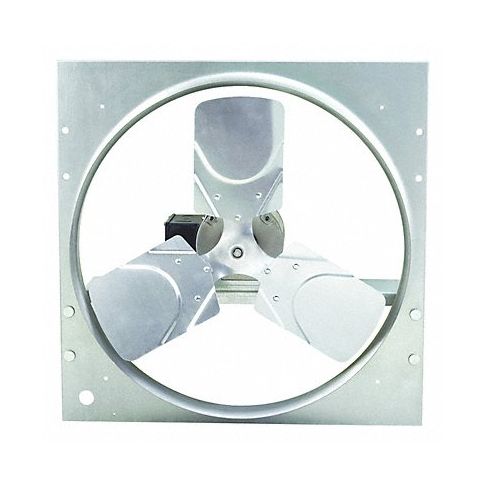

Exh/Sp Fan 20In Bl Alum 115/230V MPN:10E025

Technical Specifications

• Item Exhaust/Supply Fan
• Type Direct Drive Reversible
• Blade Dia. 20 in
• Exhaust/Supply CFM @ 0.000-In. SP 3859/3471
• Exhaust/Supply CFM @ 0.125-In. SP 3477/3180
• Exhaust/Supply CFM @ 0.250-In. SP 3180/2989
• Exhaust/Supply CFM @ 0.375-In. SP 2756/2671
• Exhaust/Supply Fan Item Reversible Exhaust/Supply Fan
• Max. Inlet Temp. (Deg. F) 104 Degrees F
• Drive Package With Motor Included No
• Max. Ambient Temp. (F) 104 Degrees F
• Speed 1
• Fan Voltage 115/230V AC
• Hz 60
• Phase 1
• Operating Amps 3.3/1.7
• Fan RPM 1750/1740
• Motor RPM 1750/1740
• Exhaust/Supply Fan Motor HP 1/3 hp
• Bearing Type Ball
• Motor Enclosure Totally Enclosed Air-Over
• Motor Insulation Class B
• Height (In.) 24 in
• Width (In.) 24 in
• Max. Depth (In.) 14 1/4 in
• Dia. Opening Required (In.) 22 in
• Mounting Position Vertical
• Frame Finish Galvanized
• Propeller Material Aluminum
• Number of Blades 3
• Shaft Dia. (In.) 1/2 in
• Agency Compliance UL and cUL Listed, AMCA
• Includes Reversing Switch
• Recommended Intake Guards 1WBU2
• Recommended Wall Collar 3FKF3
• Recommended Wall Housing 3FKF7

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 10E025
• MPN: 10E025

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414596590
• GDS Category Name: Axial Exhaust and Supply Fans with Motor
• GDS Family Name: Exhaust Fans
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101502
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Ventilation
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Air exhausters
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
