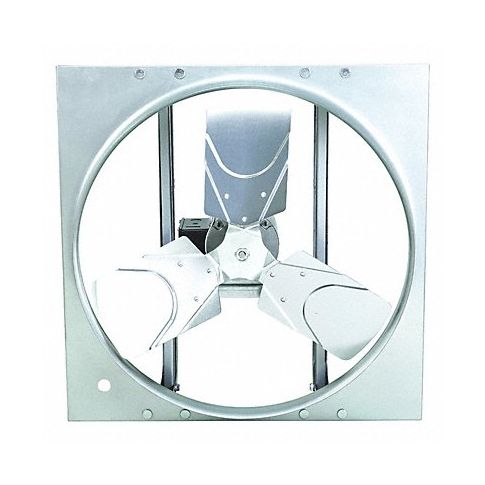

Exh/Sp Fan 24In Bl Alum 208-230/460V MPN:10E032

Technical Specifications

• Item Exhaust/Supply Fan
• Type Direct Drive Reversible
• Blade Dia. 24 in
• Exhaust/Supply CFM @ 0.000-In. SP 5025/4261
• Exhaust/Supply CFM @ 0.125-In. SP 4473/3816
• Exhaust/Supply CFM @ 0.250-In. SP 3731/3392
• Exhaust/Supply CFM @ 0.375-In. SP 2540/2332
• Exhaust/Supply Fan Item Reversible Exhaust/Supply Fan
• Max. Inlet Temp. (Deg. F) 104 Degrees F
• Drive Package With Motor Included No
• Max. Ambient Temp. (F) 104 Degrees F
• Speed 1
• Fan Voltage 208-230/460V AC
• Hz 60
• Phase 3
• Operating Amps 2.1-2.3/1.2
• Fan RPM 1150/1150
• Motor RPM 1150/1150
• Exhaust/Supply Fan Motor HP 1/2 hp
• Bearing Type Ball
• Motor Enclosure Totally Enclosed Air-Over
• Motor Insulation Class B
• Height (In.) 28 in
• Width (In.) 28 in
• Max. Depth (In.) 14 7/8 in
• Dia. Opening Required (In.) 26 in
• Mounting Position Vertical
• Frame Finish Galvanized
• Propeller Material Aluminum
• Number of Blades 3
• Shaft Dia. (In.) 1/2 in
• Agency Compliance UL and cUL Listed, AMCA
• Includes Reversing Switch
• Recommended Intake Guards 1WBU3
• Recommended Wall Collar 1WBV1
• Recommended Wall Housing 3FKF8

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 10E032
• MPN: 10E032

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414596590
• GDS Category Name: Axial Exhaust and Supply Fans with Motor
• GDS Family Name: Exhaust Fans
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101502
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Ventilation
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Air exhausters
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
