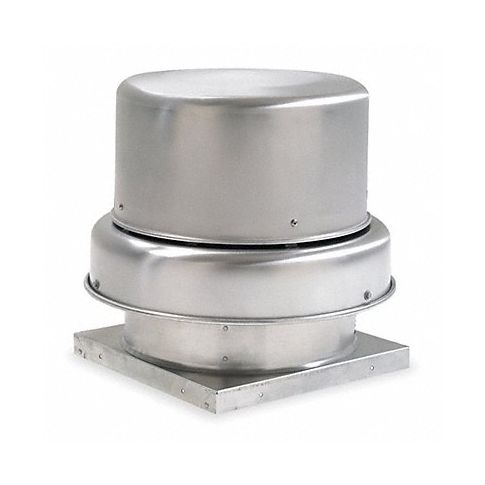

Alu 35.5 Dia 36.2 H Roof Fan w.Motor MPN:7A656
This aluminum roof fan's sturdy build stands tall when compared to its counterparts; capable of withstanding prolonged usage thanks to the corrosion-resistant material that forms it, ideal for heat elimination and smoke evacuation in industries like bakeries and spray painting shops. Incorporating robust motors which allow it to generate consistent airflow needed for heavy-duty ventilation applications throughout commercial spaces - from factories to warehouses while keeping cool the spaces; it also ensures balanced temperature levels in attic spaces where it's an essential item on the list of industries demanding reliable ventilation systems. Moreover, the centrifugal downblast roof exhaust fan offers emergency assistance too, acting as a lifesaver during unforeseen emergencies such as fires where air circulation proves pivotal for evacuations; an absolute necessity amid industries & warehouses requiring robust ventilation solutions.
Technical Specifications
- Item Downblast Ventilator
- Drive Type - Roof Ventilators Belt Drive
- Duty Rating - Roof Ventilators Standard
- Drive Package With Motor Included Yes
- Voltage - Roof Ventilators 208 V AC/230 V AC/460 V AC
- Motor HP - Roof Ventilators 1/2
- Base Size - Roof Ventilators 30 in x 30 in
- Number of Speeds 1
- Mounting Location - Roof Ventilators Roof
- Wheel Dia. 18 1/2 in
- Item - Roof Ventilators Downblast Ventilator
- CFM @ 0.000-In. SP 3655
- CFM @ 0.125-In. SP 3527
- CFM @ 0.250-In. SP 3388
- CFM @ 0.375-In. SP 3234
- CFM @ 0.500-In. SP 3052
- CFM @ 0.625-In. SP 2844
- CFM @ 0.750-In. SP 2601
- CFM @ 0.875-In. SP 2272
- Sones @ 0.125-In. SP @ 5 Ft. 12.8
- Sones @ 0.250-In. SP @ 5 Ft. 12.0
- Sones @ 0.500-In. SP @ 5 Ft. 11.1
- Phase 3
- Hz 60
- Max. BHP 0.54
- RPM 940
- Base Height 1 3/4 in
- Overall Dia. 35-1/2 in
- Overall Height 34-3/8 in
- Shaft Dia. Wheel End 3/4 in
- Max. Inlet Temp. 180 Degrees
- Housing Material Spun Aluminum
- Wheel Material Aluminum
- Wheel Type Backward Inclined Centrifugal
- Speed Controllable No
- Adj. 12 3/8"H Roof Curb Stock No. 3C437
- Adj. 6 3/8"H Roof Curb Stock No. 4C454
- Assembled/Unassembled Unassembled
- Recommended 12 In. Fixed Curb Item No. 4HX49
- Recommended 8 In. Fixed Curb Item No. 4HX41
- Agency Compliance UL/cUL 705, AMCA Sound, Air
- Dimension A 30 in
- Dimension B 35-1/2 in
- Dimension C 34-3/8 in
- Dimension D 5-1/2 in
- Includes 4L280, 4YU97, BK67, 1VP3458, QT34, 31TT08
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7A656
- MPN: 7A656
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414599080
- GDS Category Name: Centrifugal Downblast Roof Exhaust Fans with Motor
- GDS Family Name: Roof Ventilators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101502
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Ventilation
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air exhausters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
