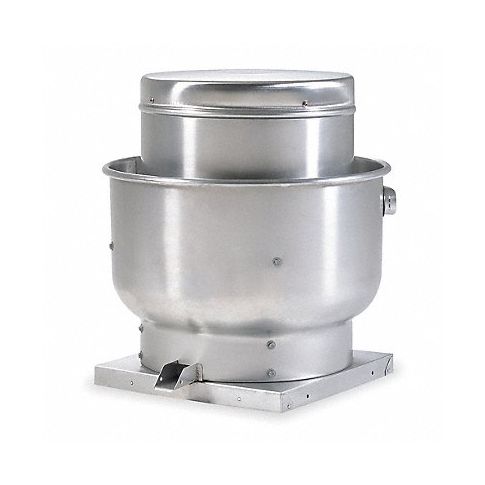

Alu 35.4 Dia 36.5 H Roof Fan w.Motor MPN:7A697
Alu 35.4 Dia 36.5 H Roof Fan w.Motor
The Alu 35.4 Dia 36.5 H Roof Fan w/Motor is a versatile industrial ventilation solution for heavy-duty applications, offering customizable airflow options through large diameter, powerful motor, and 2-speed settings. Designed with an aluminum construction to ensure durability, this fan efficiently removes smoke, fumes, and heat from factories or workshops across various industries such as automotive, chemical, and manufacturing. Its versatility in the Centrifugal Upblast Roof Exhaust Fans with Motor industry makes it a valuable investment for any industrial setting to maintain optimal air quality and temperature control. Overall, the Alu 35.4 Dia 36.5 H Roof Fan w/Motor provides efficient, reliable, and secure ventilation solutions for all types of heavy-duty industrial applications.
This centrifugal belt-drive upblast ventilator is designed for use in restaurants, schools, and commercial and industrial applications to exhaust contaminated air from kitchen range hoods up and away from the roof. Its 1-pc. rolled aluminum windband is fully welded to the base to create a virtually leakproof seal between the ventilator and the mounting surface. Internal steel support braces and a fully rolled windband dramatically increase the rigidity of the ventilator for greater stability during transport and installation. Motor, drive frame, and wheel are isolated from the mounting base by independent neoprene studs no metal-to-metal contact, greatly reducing overall noise. The motor compartment is isolated from the contaminated air stream and is cooled by outside air that is pulled in through an oversized breather tube by the spinning action of the wheel.
Technical Specifications
- Item Upblast Ventilator
- Drive Type - Roof Ventilators Belt Drive
- Drive Package With Motor Included Yes
- Base Size - Roof Ventilators 30 in x 30 in
- Duty Rating - Roof Ventilators Standard
- Voltage - Roof Ventilators 208 V AC/230 V AC/460 V AC
- Motor HP - Roof Ventilators 1/2
- Mounting Location - Roof Ventilators Roof
- Number of Speeds 1
- Wheel Dia. 18 1/2 in
- Item - Roof Ventilators Upblast Ventilator
- CFM @ 0.000-In. SP 3551
- CFM @ 0.125-In. SP 3389
- CFM @ 0.250-In. SP 3243
- CFM @ 0.375-In. SP 3115
- CFM @ 0.500-In. SP 2879
- CFM @ 0.625-In. SP 2654
- CFM @ 0.750-In. SP 2363
- CFM @ 0.875-In. SP 1900
- Sones @ 0.125-In. SP @ 5 Ft. 13.5
- Sones @ 0.250-In. SP @ 5 Ft. 13.1
- Sones @ 0.500-In. SP @ 5 Ft. 12.4
- Assembled/Unassembled Unassembled
- Phase 3
- Hz 60
- Max. BHP 0.52
- RPM 940
- Base Height 1-3/4 in
- Overall Dia. 35-3/8 in
- Shaft Dia. Wheel End 3/4 in
- Bearing Type Regreasable Pillow Block
- Overall Height 36 1/2 in
- Max. Inlet Temp. 300 Degrees
- Housing Material Spun Aluminum
- Wheel Material Aluminum
- Speed Controllable No
- Fixed UL 762 Kitchen Roof Curb Stock No. 4HX57
- Recommended 12 In. Fixed Curb Item No. 2RB79
- Recommended 8 In. Fixed Curb Item No. 4HX41
- Recommended Damper Size (In.) 23 x 23
- Recommended Damper Stock No. 4HX67
- Adj. 12 3/8"H Roof Curb Stock No. 2ZV83
- Adj. UL 762 Kitchen Roof Curb Stock No. 4HX62
- Requires Roof Curb For New Installation
- Includes NEMA 1 Junction Box, Drive Package
- Standards UL/cUL 762, AMCA Sound and Air
- Dimension A 30 in
- Dimension B 35-3/8 in
- Dimension C 34-3/4 in
- Dimension D 21 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7A697
- MPN: 7A697
