ExtF DPk 24In Bld Dia G Stl 115/208-230V MPN:7CC76
ExtF DPk 24In Bld Dia G Stl 115/208-230V

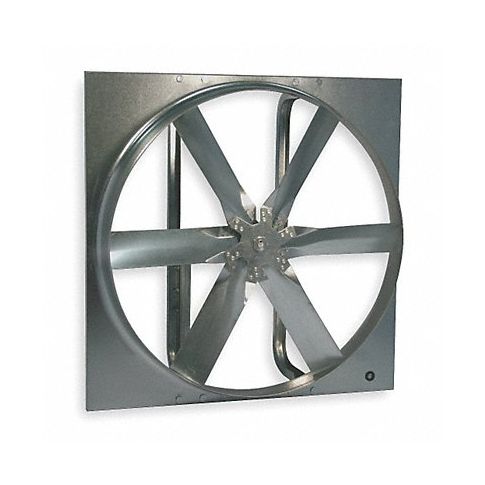

Dayton® standard-duty belt-drive 24" exhaust fan is designed to be used in commercial applications that require high volumes of air at low static pressures. The fan features a 6-blade galvanized-steel propeller, rigid drive-frame rails, and a 1-pc. motor/bearing plate. Variable pitch and adjustable motor pulley optimize fan performance. Comes complete with a drive package, which includes the appropriate motor, belt, bushings and sheaves (all packed separately) to obtain the rated performance. Mount fan vertically for exhaust operation; horizontally for supply.• Air handling-quality bearings meet a minimum of L10-100,000 hr.• UL and C-UL Listed• Unassembled
Technical Specifications
- Item Standard Duty Exhaust Fan with Motor and Drive Package
- Blade Dia. 24 in
- CFM @ 0.000-In. SP 5292
- CFM @ 0.125-In. SP 4830
- CFM @ 0.250-In. SP 4207
- Sones @ 0.000-In. SP @ 5 Ft. 21
- Sones @ 0.250-In. SP @ 5 Ft. 19.9
- Max. Inlet Temp. 104 Degrees F
- Drive Package With Motor Included Yes
- Fan Voltage 115/208-230 V AC
- Exhaust/Supply Fan Item Exhaust Fan
- Hz 60
- Phase 1
- Full Load Amps 6.6/3.4-3.1
- Exhaust/Supply Fan Motor HP 1/3
- Max. BHP 0.39
- Bearing Type Sealed Pillow Block
- Motor RPM 1725
- Motor Type Split-Phase
- Motor Enclosure Open Dripproof
- Motor Insulation Class B
- Fan RPM 1012
- Height 28 in
- Width (In.) 28
- Max. Depth 18 in
- Venturi Clearance Dia. 24-3/8 in
- Venturi Depth 4-3/8 in
- Flange Width 28 in
- Flange Depth 1 in
- Mounting Position Horizontal or Vertical
- Frame Material Galvanized Steel
- Propeller Material Galvanized Steel
- Number of Blades 6
- Bearing Size 3/4 in
- Shaft Dia. 3/4 in
- Includes Drive Package
- Aluminum Wall Shutter No. 3C308
- Fiberglass Wall Shutter No. 5C215
- Galvanized Wall Shutter No. 1C746
- Intake Guard No. 1WBU3
- Motorized Wall Galv. Shutter Stock No. 3C727
- Wall Collar Stock No. 1WBV1
- Weatherhood No. 1WBV9
- Assembled/Unassembled Unassembled
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7CC76
- MPN: 7CC76
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414599080
- GDS Category Name: Axial Exhaust and Supply Fans with Motor
- GDS Family Name: Exhaust Fans
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101502
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Ventilation
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air exhausters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
