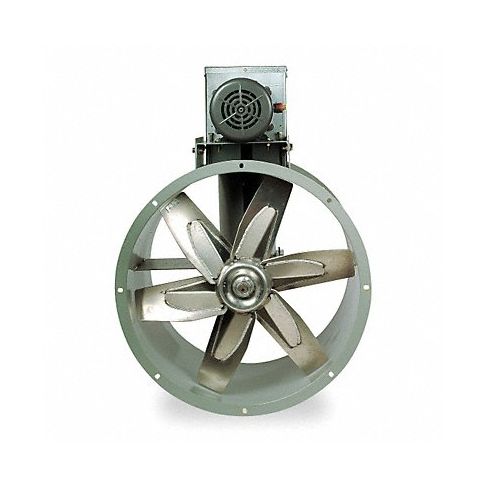

Steel 27 Dia 18 L 37.25 H Tubeaxial Fan MPN:7F830
Steel 27 Dia 18 L 37.25 H Tubeaxial Fan
The Steel 27 Diameter x 18 Width x 37.25 Height Tubeaxial Fan is an ideal choice for commercial and industrial settings needing robust ventilation systems to maintain temperature control in vast areas. Its motor-driven design offers consistency in temperature regulation tailored to HVAC and refrigeration applications, while its durable steel construction ensures longevity even in challenging conditions. The product's extensive dimensions and powerful airflow circulation capabilities make it suitable for manufacturing plants, warehouses, storage facilities, distribution centers, and other similar establishments where a stable temperature environment is crucial for optimal performance.
Belt-Drive Tubeaxial Fans • Mount: vertical or horizontal Permanently lubricated ball bearings Max. inlet air temp.: 200°F Max. ambient: 104°F Precision-balanced, spark-resistant aluminum blades Belt guards AMCA Type B spark-resistant propellers (99-0401-86) Optional companion flanges are sold in pairsStreamlined belt tunnel ventilates the drive compartment with air from outside the fan. Steel housing is iron phosphate-processed for rust protection; baked enamel paint finish. Factory installed cast-iron sheave is assembled on fan shaft. Motors and belts are packed separately when complete fan with drive package is ordered.Note: These fans cannot be used if the environment surrounding them is not always free of flammable gases, vapors, or liquids; combustible dust; or ignitable fibers or flyings. Installation must comply with all local and national safety codes including the National Electrical Code (NEC) and the National Fire Protection Act (NFPA). OSHA complying guards are required when fan is installed within 8 ft. of floor or working level, or within reach of personnel. Review OSHA Codes and UL Standards.
Technical Specifications
- Item Tubeaxial Fan with Motor and Drive Package
- Drive Type Belt-Drive
- Blade Dia. 24 in
- CFM @ 0.000-In. SP 7925
- CFM @ 0.125-In. SP 7626
- CFM @ 0.250-In. SP 7305
- CFM @ 0.500-In. SP 6562
- CFM @ 0.750-In. SP 5634
- CFM @ 1.000-In. SP 2914
- Sones @ 0.250-In. SP @ 5 Ft. 39
- Motor HP 1-1/2
- Max. BHP 1.38
- Fan RPM 1468
- Motor Enclosure Totally Enclosed Fan Cooled
- Phase 3
- Voltage 208-230/460
- Max. Motor Height 10 in
- Shaft Dia. 1 in
- Number of Blades 6
- Full Load Amps 4.5-4.1/2.0
- Motor Type 3-Phase
- Max. Inlet Temp. 200 Degrees F
- Max. Ambient Temp. 104 Degrees F
- Bearing Type Ball
- Mounting Position Vertical/Horizontal
- Housing Material Steel
- Housing Finish Baked Enamel
- Blade Material Spark Resistant Aluminum
- Hz 60
- Motor RPM 1730
- Height 37-1/4 in
- Width 26-7/8 in
- Max. Depth 18 in
- Housing Dia. w/Mtg. Flange 27 in
- Housing Dia. w/o Mtg. Flange 24-5/16 in
- Inlet Dia. 24 7/16 in
- Outlet Dia. 24 7/16 in
- Assembled/Unassembled Unassembled
- Bolt Circle Dia. 25-3/4 in
- Replacement Fan Blade Stock No. 4C664
- Companion Flange Stock No. 3C436
- Standards AMCA
- Includes Belt guard
- Dimension A 27 in
- Dimension B 16-3/4 in
- Dimension C 24-5/16 in
- Dimension D 18 in
- Dimension E 7/16 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7F830
- MPN: 7F830
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414599080
- GDS Category Name: Tubeaxial Fans with Motor
- GDS Family Name: Tubeaxial Fans and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101604
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Fans
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
