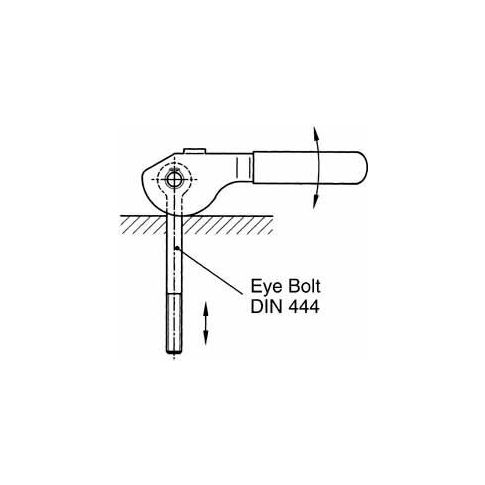

Clamp Cam Levers, Type: Double Cam, Hole Diameter (Inch): 0.3100, Hole Diameter (mm): 0.3100, 7.87, Hole Center to Lever End (mm): 114.05 MPN:P50
Clamp Cam Levers; Type: Double Cam; Hole Diameter (Inch): 0.3100; Hole Diameter (mm): 0.3100; 7.87; Hole Center to Lever End (mm): 114.05; Hole Center to Lever End (Decimal Inch): 4.4900; Overall Width (mm): 12.95; Overall Width (Decimal Inch): 0.5100; Tr
- Clamp Cam Levers
- Type: Double Cam
- Hole Diameter (Inch): 0.3100
- Hole Diameter (mm): 0.3100
- 7.87
- Hole Center to Lever End (mm): 114.05
- Hole Center to Lever End (Decimal Inch): 4.4900
- Overall Width (mm): 12.95
- Overall Width (Decimal Inch): 0.5100
- Tr
Product Information
- : P50
- Hole Center to Cam End (Decimal Inch): 0.7700
- Hole Center to Cam End (mm): 19.56
- Hole Center to Cam End Radius (Decimal Inch): 0.6800
- Hole Center to Cam End Radius (mm): 17.27
- Hole Center to Cam Top (Decimal Inch): 0.5500
- Hole Center to Cam Top (mm): 13.97
- Hole Center to Lever End (Decimal Inch): 4.4900
- Hole Center to Lever End (mm): 114.05
- Locking Range From Center (Degrees): 30.00; 5.00
- Space Between Cams (Decimal Inch): 0.3500
- Space Between Cams (mm): 8.89
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: CZ, Czech Republic
- TAA Compliant: Yes
- UNSPSC: 27112807
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.19
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 12:25am UTC
Category: Clamping Accessories
