Swing Check Valve Cast Steel 3 Flange MPN:1570 CB2 3"
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxo-4evk3

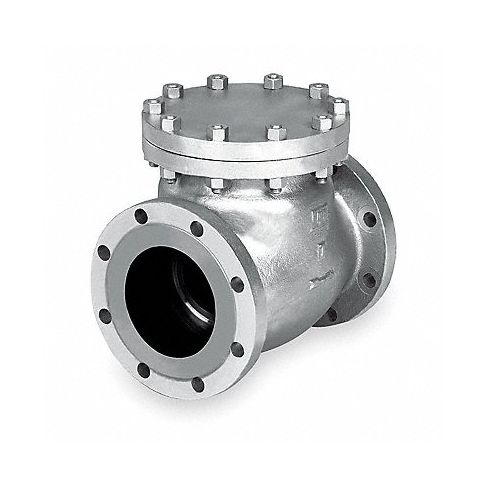

Swing Check Valve Cast Steel 3 Flange
Introducing our high-quality Cast Steel Swing Check Valve with Cobalt/chrome seats - perfect for ensuring a reliable flow control in your pipelines! Made to meet API 600 and ASME B 16.34 standards, this swing check valve is designed to prevent backflow while allowing fluid passage in only one direction. Mount it horizontally, except for cast-iron models that can be installed vertically or horizontally. With its flanged ends, the Swing Check Valve provides easy installation and maintenance. Its robust construction makes it ideal for use in oil, gas, and chemical industries as well as water treatment facilities. Upgrade your pipeline safety with our Cast Steel Swing Check Valve - order now!
Top product features:
- Cobalt/chrome seats for extended life and corrosion resistance
- Meets API 600 and ASME B 16.34 standards for quality assurance
- Flanged-end design for easy installation and maintenance
Top product applications:
- Oil and gas pipeline systems to prevent backflow and maintain flow direction
- Water treatment facilities to control water flow and prevent contamination
- Industrial processes that require fluid regulation and prevention of reverse flow
Cast-SteelCobalt/chrome seats.Meet API 600 and ASME B 16.34.Flanged-End Swing Check ValvesAllow flow in only 1 direction to prevent backflow; Mount horizontally, except cast-iron models mount vertically or horizontally.
Technical Specifications
- Item - Check Valves Check Valve
- Flow Design Single
- Mechanism and Body Design Inline Swing
- Body Material - Valves Cast Steel
- Pipe or Tube Size 3 in
- Connection Type Flange x Flange
- Cracking Pressure 2.0 psi
- Mounting Orientation Horizontal
- Seal Material Chrome, Cobalt
- Max. Temp. - Valves 1,000 Degrees F
- Min. Temp. - Valves -20 Degrees F
- Max. Water Pressure - Valves 285 psi @ 100 Degrees F
- Max. Steam Pressure - Valves 200 psi WSP
- Seat Material Chrome, Cobalt
- Flow - Valves 327 gpm
- Full Flow - Valves Yes
- Application - Valves General Purpose
- Length 9 1/2 in
- Overall Height 7 3/32 in
- Cap to Inlet Center 7 3/32 in
- Standards API 600 ASME B 16.34
Manufacturer Details
- Manufacturer: Milwaukee
- Condensed Mfg Number: 1570CB23
- MPN: 1570 CB2 3"
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481301090
- GDS Category Name: Check Valves
- GDS Family Name: Check Valves and Backflow Preventers
- GDS Segment Name: Plumbing
- UNSPSC: 40141634
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 34
- UNSPSC Commodity Name: Swing check valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B0115HD1IO, B006BFZJ90, B006BFYN9C
Product info last updated on April 3, 2024 10:11pm UTC Category: Check Valves and Backflow Preventers
