Sensor Magnetic MPN:6180-012

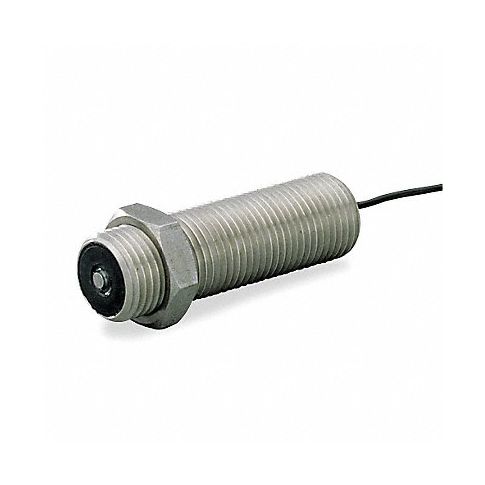

The Monarch Instrument M-190W magnetic sensor is a self-powered gear sensor that is most popular with 60-tooth 20-pitch gears. The sensor self-generates an AC signal.

• As distance increases, output signal decreases
• For use with ferrous metal gear teeth; min. target size 0.001"

Technical Specifications

• Item Magnetic Sensor
• RPM 1 to 100,000
• Features Recommend To Use With 60 Tooth, 20 Pitch Gear, 5/8-16 Thread Size
• Max. Sensing Distance 0.005 in
• Temp. Range - 100 to 225 F, -73 to 107 C
• Length (In.) 1.26 in
• For Use With Mfr. No. ACT-1B/115, ACT-3/115

Manufacturer Details

• Manufacturer: Monarch
• Condensed Mfg Number: 6180012
• MPN: 6180-012

Label Details

• Hazardous Material: Y
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9029908040
• GDS Category Name: Tachometer Sensors
• GDS Family Name: Nonelectrical Properties Testing
• GDS Segment Name: Test Instruments
• UNSPSC: 41112802
• UNSPSC Class ID: 28
• UNSPSC Commodity Name: Transportation related equipment and instruments
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Tachometers
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
