Hoffman ASWV44 Swivel 1.06X4.00X4.00 Aluminum ASWV44
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-56195B14
Hoffman ASWV44 Swivel 1.06X4.00X4.00 Aluminum ASWV44 Shop Personal Protective Equipment, Maintenance, Repair & Operations. Free Shipping.
This item is restricted and will not ship to the following states: PR.

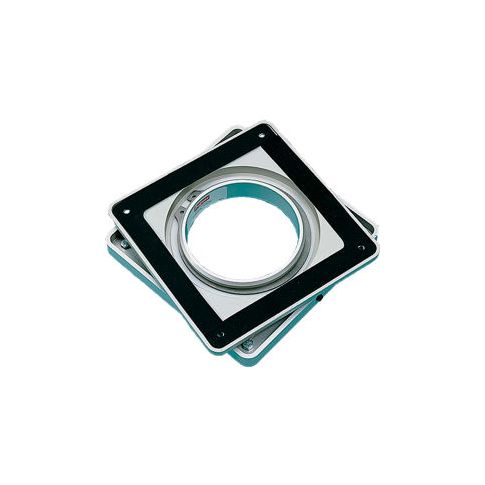

Hoffman ASWV44, Swivel, 1.06X4.00X4.00, Aluminum
A swivel mechanism can be used to provide a machine operator a way to easily rotate an operator interface enclosure to a convenient operating position. Maximum rotation is 350 degrees. The low-profile swivel has a large center opening in addition to a large, wobble-free bearing surface. Swivel mechanism can be locked in any position. The swivel mechanism is designed for use between the bottom of an operator interface enclosure and a pedestal.Do not use the Swivel between an overhead support and an enclosure.The Swivel is cast aluminum with an anodized finish. Mounting hardware and gaskets are furnished. Integral stops are provided at 30-degree increments between 60 degrees and 180 degrees of rotation on catalog number ASWV88 only.
A swivel mechanism can be used to provide a machine operator a way to easily rotate an operator interface enclosure to a convenient operating position. Maximum rotation is 350 degrees. The low-profile swivel has a large center opening in addition to a large, wobble-free bearing surface. Swivel mechanism can be locked in any position. The swivel mechanism is designed for use between the bottom of an operator interface enclosure and a pedestal.Do not use the Swivel between an overhead support and an enclosure.The Swivel is cast aluminum with an anodized finish. Mounting hardware and gaskets are furnished. Integral stops are provided at 30-degree increments between 60 degrees and 180 degrees of rotation on catalog number ASWV88 only.
Product Specifications
- BRANDHoffman®
- MANUFACTURERS PART NUMBERASWV44
- CONSTRUCTIONAluminum
- MAXIMUM ENCLOSURE SIZE A X B X C INCHES24.00 x 24.00 x 16.00
- DESCRIPTION4 x 4 Swivel
- COLOR--
- MAXIMUM LOAD INCLUDING ENCLOSURE100 lbs.
- A X B X C MM7x102x102
- MAXIMUM ENCLOSURE SIZE A X B X C MM610 x 610 x 406
- A X B X C INCHES1.06x4.00x4.00
- WEIGHT (LB.)--
Additional Information
- UPC: 783510377700
- UNSPSC: 31162504
- Brand: Pentair Equipment Protection
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: MN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 6.25
- Package Width: 6.00
- Package Height: 2.50
- Package Weight: 1.20
Product info last updated on October 17, 2024 6:52pm UTC
Category: Box Accessories
