Compact Dual Pressure Control SPST MPN:O12-1506
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2E986

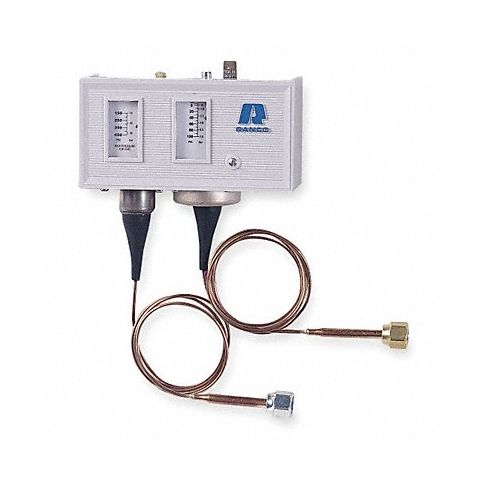

Compact Dual Pressure Control SPST
Ranco Compact Dual Pressure Control SPST is designed for use in HVAC and refrigeration systems, providing excellent compressor protection with its dual-pressure control functions. The SPST switch ensures easy installation and reliable operation, while the high and low pressure ranges make it suitable for a wide range of applications. The fixed 50 PSIG differential ensures consistent performance and safety, protecting against pressure fluctuations and potential damage to the system. With its compact size and ease of use, Ranco Compact Dual Pressure Control SPST is the perfect solution for anyone looking for reliable refrigerant pressure control.
Top product features:
- Dual-Pressure Controls: Combine high-pressure compressor protection with low-pressure, cycling, or safety functions.
- SPST Switch Type: Ensures easy installation and reliable operation.
- Compact Size: Makes it ideal for use in tight spaces and ease of handling.
Top product applications:
- HVAC Systems: Ranco Compact Dual Pressure Control SPST can be used in heating, ventilation, and air conditioning systems to regulate refrigerant pressure, ensure compressor protection, and maintain optimal performance of the system.
- Refrigeration Units: The product can be applied in refrigeration units, such as walk-in freezers, coolers or refrigerators, to manage refrigerant pressure levels, prevent pressure fluctuations, and prolong equipment lifespan.
- Commercial Applications: The Ranco Compact Dual Pressure Control SPST is ideal for use in commercial settings, such as supermarkets, restaurants, or office buildings, to maintain safe refrigerant pressure levels, reduce energy consumption, and extend the life of equipment.
Refrigerant Pressure Controls • SPST, except where notedDual-Pressure ControlsCombine high-pressure compressor protection with low-pressure, cycling, or safety functions. For R-12, R-22, R-134A, and R-502.
Technical Specifications
- Item Dual Pressure Control
- Switch Type SPST
- Low Pressure Range (PSIG) 12 to 50
- High Pressure Range (PSIG) 100 to 250
- High Pressure Differential (PSIG) 50 Fixed
- Low Pressure Differential (PSIG) 5 to 35
- Reset Low Auto
- Reset High Auto
- Pressure Connection 36 in Capillary
- Mounting Any Position
- Main Switch Off Time (Sec.) 40-110
- Main Switch On Time (Sec.) 1-20
- Voltage 24/240
- For Use With R-12, R-22, R-134A and R-502, Commercial Refrigeration and Air Conditioning
- Characteristics High Pressure Compressor Protection with Low Pressure, Cycling or Safety Functions
- Includes NEMA 1 Enclosure, Nonconductive Cover
Manufacturer Details
- Manufacturer: Ranco
- Condensed Mfg Number: O121506
- MPN: O12-1506
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9032200000
- GDS Category Name: Dual Pressure Controls
- GDS Family Name: HVAC Controls and Thermostats
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 41112411
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pressure controllers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
