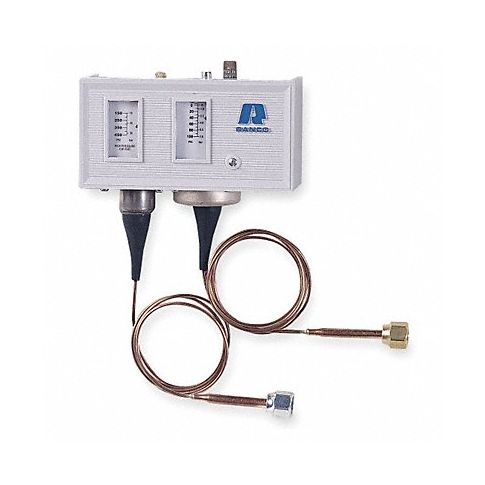

Compact Dual Pressure Control NEMA 1 MPN:O12-1502

Refrigerant Pressure Controls

• SPST, except where noted
Dual-Pressure Controls
Combine high-pressure compressor protection with low-pressure, cycling, or safety functions. For R-12, R-22, R-134A, and R-502.

Technical Specifications

• Item Dual Pressure Control
• Switch Type SPST
• Low Pressure Range (PSIG) 12 to 50
• High Pressure Range (PSIG) 150 to 450
• High Pressure Differential (PSIG) 70 Fixed
• Low Pressure Differential (PSIG) 5 to 35
• Reset Low Auto
• Reset High Auto
• Pressure Connection 36 in Capillary
• Mounting Any Position
• Main Switch Off Time (Sec.) 1-30
• Main Switch On Time (Sec.) 30-90
• Voltage 24/240
• For Use With R-12, R-22, R-134A and R-502, Commercial Refrigeration and Air Conditioning
• Characteristics High Pressure Compressor Protection with Low Pressure, Cycling or Safety Functions
• Includes NEMA 1 Enclosure, Nonconductive Cover

Manufacturer Details

• Manufacturer: Ranco
• Condensed Mfg Number: O121502
• MPN: O12-1502

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9032896025
• GDS Category Name: Dual Pressure Controls
• GDS Family Name: HVAC Controls and Thermostats
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 41112411
• UNSPSC Class ID: 24
• UNSPSC Commodity Name: Pressure measuring and control instruments
• UNSPSC Commodity ID: 11
• UNSPSC Commodity Name: Pressure controllers
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
