Agr ExtFn 36In Bld Dia Steel 115/230V MPN:FFM365G12

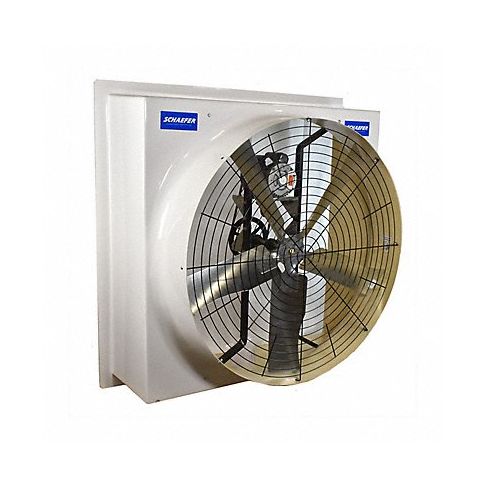

Flush-Mount Belt-Drive Fiberglass Exhaust Fans

• Rugged fiberglass housing Galvanized steel blades Heavy-duty aluminum shutters Shipped fully assembled
Mount flush from inside with sturdy mounting flange. Fiberglass venturi maximizes airflow. Motors are energy efficient, totally enclosed, thermally protected, and maintenance free. Shipped with motor, belt, and automatic belt tensioner.

Technical Specifications

• Item Agricultural Exhaust Fan
• Type Belt Drive, Assembled
• Propeller Dia. (In.) 36 in
• CFM @ 0.000-In. SP 10,250
• CFM @ 0.050-In. SP 9500
• CFM @ 0.100-In. SP 8550
• CFM @ 0.150-In. SP 8149
• Fan RPM 448
• Voltage 115/230
• Hz 60
• Phase 1
• Full Load Amps 4.6/2.3
• Watts 373 W
• HP 1/2 hp
• Motor RPM 1725
• Motor Type Capacitor-Start/Run
• Motor Enclosure Totally Enclosed Air Over
• Motor Insulation Class B
• Height (In.) 43 1/8 in
• Width (In.) 42 3/4 in
• Max. Depth (In.) 25 1/4 in
• Opening Required H (In.) 43 3/4 in
• Opening Required W (In.) 43 3/4 in
• Flange Width (In.) 2 1/4 in
• Venturi Clearance Dia. (In.) 37 in
• Venturi Depth (In.) 10 in
• Mounting Location Wall
• Max. Ambient Temp. (F) 104 Degrees F
• Shaft Dia. (In.) 5/8 in
• Bearing Type Permanently Lubricated Ball
• Number of Blades 5
• Propeller Material Galvanized Steel
• Frame Material Fiberglass
• Frame Finish Polished Tan Fiberglass
• Free Area (Square-Ft.) 12.84
• Agency Compliance UL Listed Motor
• For Use With General Exhaust Application
• Includes Aluminum Shutter and Belt Tensioner

Manufacturer Details

• Manufacturer: Schaefer
• Condensed Mfg Number: FFM365G12
• MPN: FFM365G12

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414596595
• GDS Category Name: Axial Exhaust and Supply Fans with Motor
• GDS Family Name: Exhaust Fans
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101502
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Ventilation
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Air exhausters
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
