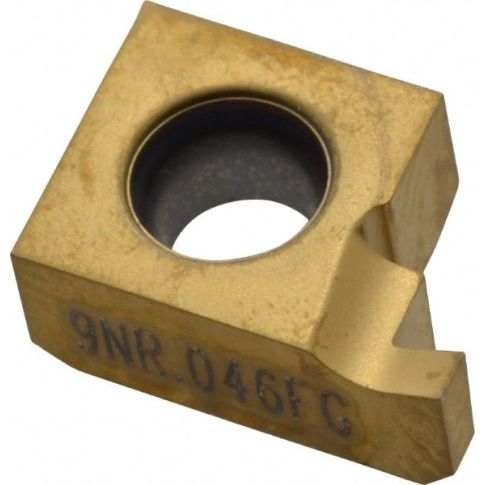

Grooving Insert: 9NR046FG CP500, Solid Carbide MPN:00077952
Grooving Insert: 9NR046FG CP500, Solid Carbide MPN:00077952 is available to buy in increments of 2
Grooving Insert: 9NR046FG CP500, Solid Carbide
Grooving Insert: 9NR046FG CP500, Solid Carbide TiAlN & TiN Finish, Right Hand, 0.046" Cutting Width, 0.046" Max Depth, Series Snap Tap
Product Information
- : 00077952
- Chip Breaker: FG
- Coating Process: PVD
- Coating/Finish: TiAlN; TiN
- Cutting Tool Application: Grooving
- Cutting Width (Decimal Inch): 0.0460
- Full Radius: No
- Inscribed Circle (Decimal Inch): 0.2500
- Inscribed Circle (Inch): 1/4
- Insert Hand: Right Hand
- Insert Holding Method: Clamp
- Insert Material: Solid Carbide
- Insert Seat Size: 9
- Insert Size: 046
- Insert Size Code: 9046
- Insert Style: 9NR
- Manufacturer Grade: CP500
- Material Grade: Micrograin
- Maximum Depth of Cut (Decimal Inch): 0.0460
- Maximum Depth of Cut Range (Decimal Inch): 0.0000 to 0.0750
- Multi-Use Tool: No
- Overall Length (Decimal Inch): 0.3543
- Overall Length (mm): 9.00
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; O; P; S
- Series: Snap Tap
- Standards: ISO
- Style: 9NR 0.046
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: IN, India
- TAA Compliant: No
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.12
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 3:07am UTC
Category: Grooving Inserts
