SMT SS6201-2RS Deep Groove Ball Bearing Stainless Steel Double Sealed OD 32mm Bore 12mmMetric SS6201-2RS
SMT SS6201-2RS Deep Groove Ball Bearing Stainless Steel Double Sealed OD 32mm Bore 12mmMetric SS6201-2RS
This item is NOT returnable.
This item is NOT cancellable.

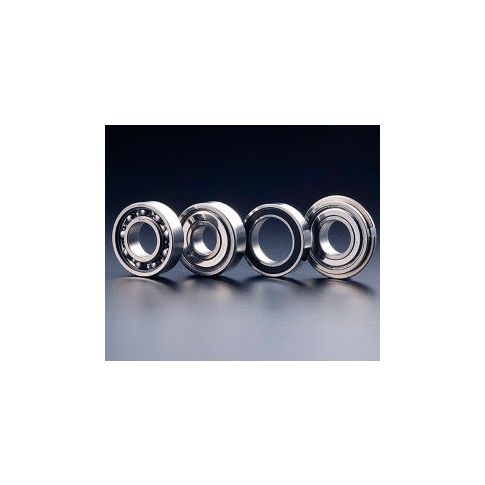

SMT SS6201-2RS Deep Groove Ball Bearing, Stainless Steel, Double Sealed, OD 32mm, Bore 12mm,Metric
SMT Stainless Steel Deep Grove Ball Bearings have uninterrupted raceway shoulders and are capable of supporting radial, axial or combined loads at higher speeds. SMT stainless steel bearings are made of the following material for corrosion resistance. SMT stainless steel bearings are commonly used in food processing machinery, cleaning equipment and other equipment used in higher temperature and humid environment.
Features:
SMT Stainless Steel Deep Grove Ball Bearings have uninterrupted raceway shoulders and are capable of supporting radial, axial or combined loads at higher speeds. SMT stainless steel bearings are made of the following material for corrosion resistance. SMT stainless steel bearings are commonly used in food processing machinery, cleaning equipment and other equipment used in higher temperature and humid environment.
Features:
- Outer & Inner Rings and Balls: SUS 440C
- Cages: SUS 304
- Shields: SUS 304
- Seals: Nitrile rubber (NBR)
- SUS 304 stainless steel bearings: For corrosion and heat resistance, and nonmagnetic applications where SUS 440C stainless steel cannot be used
- SUS 630 stainless steel bearings: For excellent corrosion resistance and higher loading, corrosion resistance is superior to SUS 440C and loading capability is higher than SUS 304
- Grease-Free bearings: For applications where lubricant cannot be allowed
- Ceramic bearings: For extremely corrosive, nonmagnetic and no-lubricant environment
Product Specifications
- BRANDSMT
- BORE DIAMETER MILLIMETERS12
- OUTER DIAMETER MILLIMETERS32
- WIDTH MILLIMETERS10
- DYNAMIC LOAD RATING (N)6800
- STATIC LOAD RATING (N)3050
- GREASE RPM17000
- CAGE MATERIALSUS 304
- HOUSING CORNER RADIUS MAX (mm)0.6
- BEARING TYPEDouble Sealed
- LUBRICATION TYPEKyodo Raremax Super, Prepacked
- TOLERANCEISO Normal
- MANUFACTURERS PART NUMBERSS6201-2RS
- OPERATING TEMPERATURE-40 to 212°F
- SHAFT FILLET CORNER RADIUS MAX (mm)0.6
Additional Information
- UNSPSC: 31171504
- Brand: Smt
- Package Quantity: 1
- Country of Origin: JP
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 1.34
- Package Width: 1.34
- Package Height: 0.47
- Package Weight: 0.08
Product info last updated on September 23, 2024 2:48pm UTC
Category: Bearings
