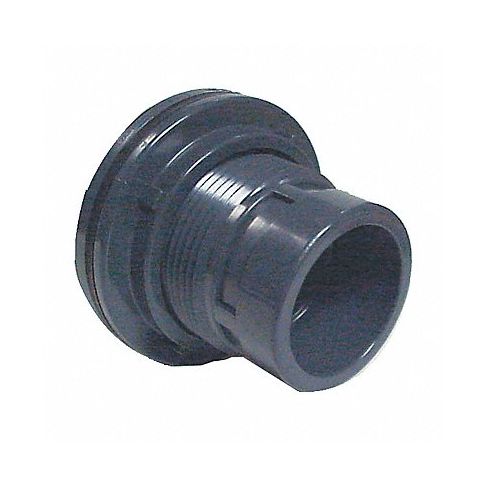

Bulkhead Tank Fitting 2 In 4 1/8 In L MPN:8172-020
Bulkhead tank fittings are a type of installation that provides a means of connecting pipes and hoses to the tanks without perforating or damaging it, which could cause leakage or loss of contents. These tank fittings can be used in both above-ground and underground tanks made from steel, fiberglass, or plastic materials. This particular bulkhead tank fitting is a 2 female NPT connection on one end, and a 4-1/8 male pipe thread (MPT) on the other. It is 3-1/4 in length making it suitable for applications requiring a shorter protrusion into the tank. Its primary purpose is to connect or disconnect pipes or hoses while preventing spills or leaks by keeping the internal pressure in the tank constant. With its stainless steel construction, it offers excellent durability and resistance to chemicals and corrosion commonly found in storage tanks containing aggressive media. Additionally, the bulkhead design simplifies inspection, maintenance, and cleaning of the tank from either end, while maintaining the integrity of the seal when not in use.
Technical Specifications
- Item Bulkhead Tank Fitting
- Body Material PVC
- Pipe Size 2 in
- Connection Type FNPT x FNPT
- Required Hole Size 3 1/4 in
- Gasket Material Neoprene
- Max. Pressure 150 psi
- Length 4 1/8 in
- Temp. Range 0 Degrees to 73 Degrees F
- Color Gray
- Standards LPCB
Manufacturer Details
- Manufacturer: Spears
- Condensed Mfg Number: 8172020
- MPN: 8172-020
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3917400090
- GDS Category Name: Bulkhead Tank Fittings
- GDS Family Name: Pipe Fittings and Couplings
- GDS Segment Name: Plumbing
- UNSPSC: 40141734
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Hardware and fittings
- UNSPSC Commodity ID: 34
- UNSPSC Commodity Name: Hose fitting
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
