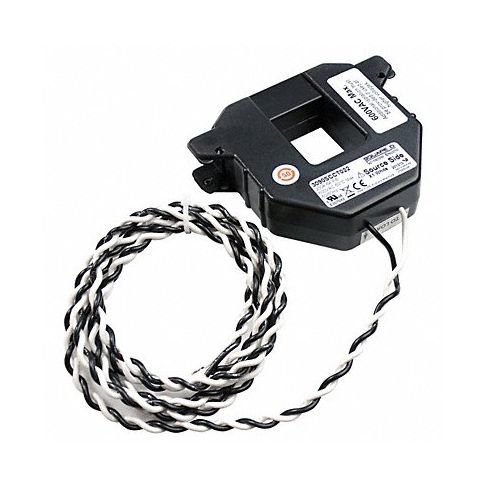

Split Core Current Transformer 300 Amp MPN:3090SCCT032
Free Shipping
In Stock
Introducing Square D's Split Core Current Transformer - 300 Amp! This innovative transformer is designed for electricians and technicians working with split core installations where solid core transformers may not fit conveniently. With a primary range of 0 to 300A, this transformer offers precise and accurate measurements for alternating current voltages from one voltage level to another. Its secondary range of 0 to 5A allows for easy readings on smaller amperage ranges as well. The split core design provides an extra layer of convenience during installation, ensuring a perfect fit every time. Whether you're working in electrical maintenance or needing to conduct detailed measurements and tests, the Square D Split Core Current Transformer is an indispensable tool for professionals.
Top product features:
- Split core design for easy installation in primary conductor
- Primary range of 0 to 300A for precise measurements
- Secondary range of 0 to 5A for easy readings on smaller amperage ranges
Top product applications:
- Electrical installations where a solid core transformer is not practical or convenient
- Electrical maintenance work where precise and accurate measurements are necessary
- Home use for monitoring electricity consumption or detecting electrical issues
Technical Specifications
- Item - Transformer Split Core Current Transformer
- Primary Range 0 to 300A
- Secondary Range 0 to 5A
- Hole Height 1.51 in
- Hole Width 1.25 in
- Electrical Connection - Current Transformer 6 ft 18 AWG Leads
- Window Rectangular
- Overall Height 3.91 in
- Overall Width 4.75 in
- Overall Depth 1.25 in
- For Use With Power Meters
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 3090SCCT032
- MPN: 3090SCCT032
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8504314035
- GDS Category Name: Current Transformers
- GDS Family Name: Transformers
- GDS Segment Name: Electrical
- UNSPSC: 39121001
- UNSPSC Class ID: 10
- UNSPSC Commodity Name: Power conditioning equipment
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Distribution power transformers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
