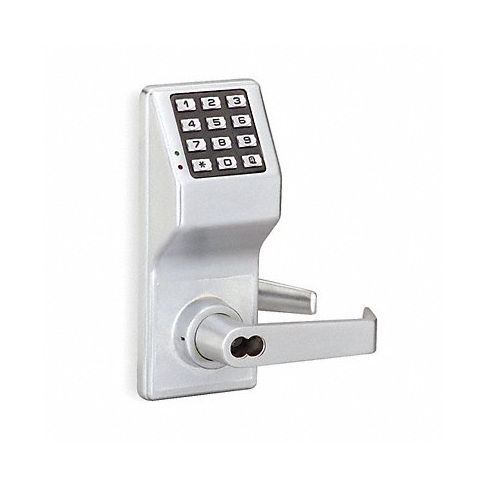

Electronic Lock Satin Chrome 12 Button MPN:DL2700WPIC US26D

The ALARM LOCK Trilogy® electronic keyless programmable lock easily replaces keyed locks. Compatible with most doors that have a standard knob set. Fingertip-programmable keypad allows up to 100 3- to 5-digit codes. Create a 3-tiered hierarchy of custom codes: 1 master, 10 managers, 90 standard codes, and three 1-time-use codes. Low battery alert. Easy to install. Key override with small format interchangeable core. Visual and audible entry indicators. Weather resistant.

Technical Specifications

• Item Electronic Keyless Lock
• Function Entry with Key Override
• Access Method Keypad
• Mounting Style Cylindrical
• Lock Material Zinc Alloy
• Finish Satin Chrome
• Series DL2700WP
• Handle Type Lever
• Door Thickness 1-5/8 in to 1-7/8 in
• Key Override Options Small Format Interchangeable Core
• Hand Nonhanded
• Outside Height 8 in
• Outside Width 3 1/4 in
• Outside Depth 2 9/16 in
• Inside Height 8 1/4 in
• Inside Width 3 1/4 in
• Inside Depth 1 11/16 in
• Latch Front Size 1-1/8 in x 2-1/4 in
• Backset 2-3/4 in
• Keypad Material Metal
• Number of Keys 12
• Timed Entry Allowance 5 to 20 sec
• Power Source (5) AA Batteries
• Battery Life 120,000 Cycles
• Operating Temp. Range -31 Degrees to 151 Degrees F
• Max. User Codes 100
• Fire Rating 3 hr
• ADA Compliant Yes
• Grade 1
• Standards UL Listed
• Weather Resistant Yes
• Includes (5) AA Batteries
• Electrical/Mechanical Electrical

Manufacturer Details

• Manufacturer: Trilogy
• Condensed Mfg Number: DL2700WPICUS26D
• MPN: DL2700WPIC US26D

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: DO
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8301406030
• GDS Category Name: Electronic Keyless Access Control Locks
• GDS Family Name: Keyless Access Locks
• GDS Segment Name: Hardware
• UNSPSC: 46171503
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Locks and security hardware and accessories
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Lock sets
• UNSPSC Family ID: 17
• UNSPSC Family Name: Security surveillance and detection
• UNSPSC Segment ID: 46
• UNSPSC Segment Name: Defense and Law Enforcement and Security and Safety Equipment and Supplies

Shipping Details

• Not For Sale In: HI AK PR
