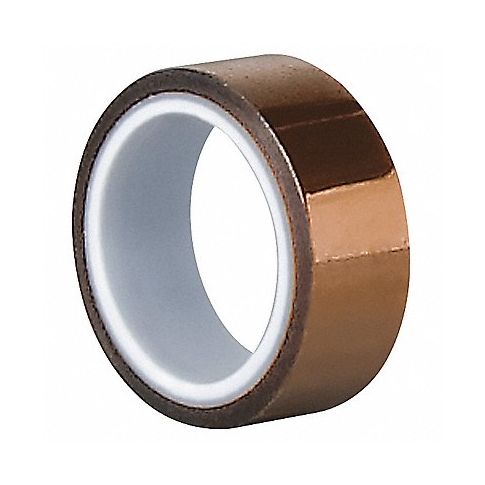

Elec Tape 15 ft Lx1/2 in W 2.7 mil Gold MPN:5419
Elec Tape 15 ft Lx1/2 in W 2.7 mil Gold
Introducing Elec Tape 15 ft Lx1/2 in W 2.7 mil Gold from 3M - the perfect solution for high-temperature applications and printed circuit board manufacturing. This versatile tape is ideal for use as a release surface during part fabrication, or as a mask for wave solder and solder dip processes. The gold color provides excellent contrast for visual identification in electrical installations. With its durable polyimide backing material and silicone adhesive, Elec Tape delivers superior performance and longevity in demanding environments. Choose Elec Tape for reliable insulation, masking, and protection in your next project.
Top product features:
- High-Temperature Resistance: Withstands temperatures up to 500F (260C)
- Low Static: Reduces the risk of electrostatic discharge in sensitive electronic applications
- Gold Color: Provides excellent contrast for visual identification in electrical installations
Top product applications:
- High-temperature part fabrication: Used as a release surface for parts that require temperatures up to 500F (260C)
- Printed circuit board assembly: Serves as a mask during wave solder or solder dip processes to protect the board from contamination
- Electrical insulation: Provides excellent contrast for visual identification in electrical installations
Use this low-static film tape as a release surface in the fabrication of parts cured at elevated temperatures, or as a mask for printed circuit boards during wave solder or solder dip processes.
Technical Specifications
- Item Film Tape
- Number of Adhesive Sides 1
- Tape Backing Material Polyimide
- Tape Adhesive Silicone
- Tape Thickness 2.7 mil
- Tape Width 1/2 in
- Tape Length 5 yd
- Min. Tape Performance Temp. -100 Degrees F
- Max. Tape Performance Temp. 500 Degrees F
- Tape Tensile Strength 33 lb-in
- Tape Adhesive Strength 20 oz/in
- Tape Shape Continuous Roll
- Series 5419
- Standards RoHS Complaint/REACH Regulations 2002/95/EC and 2005/618/EC, ASTM D3330, D3759, D3652, D149, E-595
Manufacturer Details
- Manufacturer: 3M
- Condensed Mfg Number: 5419
- MPN: 5419
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3919102055
- GDS Category Name: Insulating Electrical Tape
- GDS Family Name: Tapes
- GDS Segment Name: Adhesives Sealants and Tape
- UNSPSC: 31201522
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Tape
- UNSPSC Commodity ID: 22
- UNSPSC Commodity Name: Adhesive transfer tape
- UNSPSC Family ID: 20
- UNSPSC Family Name: Adhesives and sealants
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
