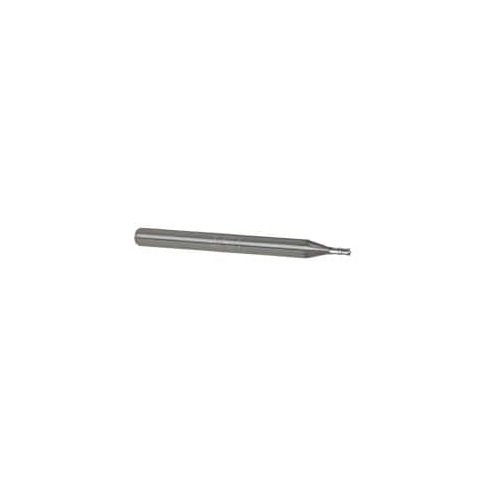

Square End Mill: 3/64'' Dia, 3/32'' LOC, 1/8'' Shank Dia, 1-1/2'' OAL, 4 Flutes, Solid Carbide MPN:12182697
Square End Mill: 3/64'' Dia, 3/32'' LOC, 1/8'' Shank Dia, 1-1/2'' OAL, 4 Flutes, Solid Carbide
The US Union Tool Square End Mill is a high-quality cutting tool designed for precise machining tasks with a diameter of 3/64'' and length of cut of 3/32''. It features a durable solid carbide construction, ensuring longevity in use. The end mill comes with four flutes, enabling efficient chip removal and smooth cutting performance. Its versatility is enhanced by the 1/8'' shank diameter that allows compatibility with various tools. This tool's small diameter and length of cut ensure precision during machining operations, making it suitable for drilling, routing, milling, and engraving applications within industries requiring precision cutting and shaping tasks, such as automotive, aerospace, medical, and more.
Square End Mill: 3/64'' Dia, 3/32'' LOC, 1/8'' Shank Dia, 1-1/2'' OAL, 4 Flutes, Solid Carbide Single End, Uncoated, Spiral Flute, 30 degree Helix, Centercutting, RH Cut, RH Flute
Product Information
- : 12182697
- Centercutting: Yes
- Chipbreaker: No
- Cutting Direction: Right Hand
- End Mill Material: Solid Carbide
- End Type: Single
- Extended Reach: No
- Finish/Coating: Bright/Uncoated
- Flute Direction: Right Hand
- Flute Type: Spiral
- Helix Angle: 30
- Helix Style: Medium
- Length of Cut (Decimal Inch): 0.0938
- Length of Cut (Inch): 3/32
- Length Type: Stub
- Material Grade: Micrograin
- Mill Diameter (Decimal Inch): 0.0469
- Mill Diameter (Inch): 3/64
- Mill Diameter Tolerance: +0.000/-0.002 in
- Number of Flutes: 4
- Overall Length (Decimal Inch): 1.5000
- Overall Length (Inch): 1-1/2
- Shank Diameter (Decimal Inch): 0.1250
- Shank Diameter (Inch): 1/8
- Shank Diameter Tolerance: -0.0001/-0.0004 in
- Variable Helix: No
- Variable Index: No
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 27112803
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on July 1, 2024 12:11am UTC
Category: Square End Mills
