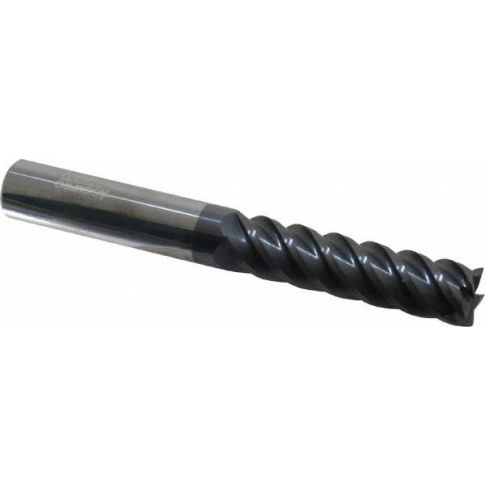

Square End Mill: 1/2" Dia, 2" LOC, 5 Flutes, Solid Carbide MPN:95168274
Free Shipping
In Stock
The Square End Mill is a precision cutting tool designed for creating square shoulders and slots with a longer length of cut. It features a solid carbide construction that ensures durability and high performance in heavy-duty applications. With dimensions of one-half inch diameter, two inches length of cut, one-half inch shank diameter, five flutes, and four inches overall length, this Square End Mill is well-suited for use in the aerospace industry for machining complex geometries and tight tolerance components, as well as in the automotive industry for producing accurate hole patterns and contours on engine parts. Its length of cut also makes it ideal for deburring and edge-trimming applications in the general machinery industry. Additionally, its solid carbide construction ensures that it can handle high-speed milling of aluminum, steel, and stainless steel components with ease, making it an essential tool for professionals who require precision and accuracy in their work.
Product Information
- : 545L5000C11
- Centercutting: Yes
- Chipbreaker: No
- Cutting Direction: Right Hand
- End Mill Material: Solid Carbide
- End Type: Single
- Extended Reach: No
- Finish/Coating: AlTiN
- Flute Direction: Right Hand
- Flute Type: Spiral
- Helix Angle: 45
- Helix Style: Medium
- Length of Cut (Decimal Inch): 2.0000
- Length of Cut (Inch): 2
- Length Type: Long
- Material Grade: Micrograin
- Mill Diameter (Decimal Inch): 0.5000
- Mill Diameter (Inch): 1/2
- Mill Diameter Tolerance: +0.000/-0.002 in
- Number of Flutes: 5
- Overall Length (Decimal Inch): 4.0000
- Overall Length (Inch): 4
- Shank Diameter (Decimal Inch): 0.5000
- Shank Diameter (Inch): 1/2
- Shank Diameter Tolerance: -0.0001/-0.0004 in
- Variable Helix: No
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 27112803
- UPC: 888226318426
- CA Restricted (Prop 65): Unknown
- Prohibited States: AK,HI,PR
