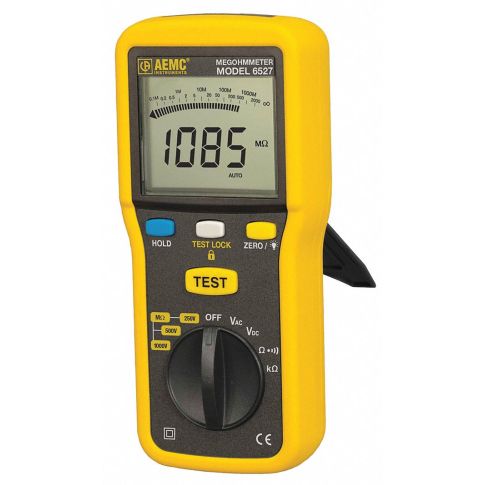

Megohmmeter 250/500/1000V DC LCD Case MPN:6527
Introducing AEMC's Megohmmeter 250/500/1000V DC LCD Case - the perfect tool for electrical testing, inspection, and diagnosis. With a range of output test voltages from 250V to 1000V DC and an impressive insulation resistance range of up to 4 gigohm, this battery-operated megohmmeter is ideal for professional electricians, DIY enthusiasts, and anyone who needs to test power cables, transformers, generators, motors, and more. The live circuit detection feature allows you to check for voltage without making contact with the equipment under test, ensuring safety and accuracy. And with a resistance range of up to 400 kilohm, this versatile tool is capable of handling a wide range of applications. Whether you're in the field or in the workshop, AEMC's Megohmmeter 250/500/1000V DC LCD Case delivers the reliability and performance you need to get the job done right.
Top product features:
- Battery Operated No need for external power source
- Output Test Voltage Range (250/500/1000V DC) Provides versatility and adaptability to different applications
- Resistance Range (0 to 400 kilohm) Offers accuracy in measuring electrical resistance.
Top product applications:
- Electrical power cable testing
- Power transformer insulation resistance testing
- Generator and motor insulation resistance testing
Technical Specifications
- Item Battery Operated Megohmmeter
- Output Test Voltage 250/500/1000V DC
- Insulation Resistance Range 0 to 4 gigohm
- Live Circuit Detection 0 to 1000V AC/V DC
- Resistance Range 0 to 400 kilohm
- Capacitance Range No
- Display Backlit LCD with Bar Graph
- Accuracy +/-2%
- Auto Power Off Yes
- Safety Rating EN-61010-1, CAT IV 600V Pol 2
- Data Logging No
- Auto Ranging Yes
- Features True Megohmmeter(R), Test Lock, DMM Functions, Auto Discharge
- Power Source (6) AA Batteries
- Includes Soft Carrying Case, Black 5 ft Test Lead, Red 5 ft Test Lead, Alligator Clips, Black Test Probe
- Manufacturers Warranty Length 2 yr
Manufacturer Details
- Manufacturer: AEMC
- Condensed Mfg Number: 6527
- MPN: 6527
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9030330040
- GDS Category Name: Megohmmeters and Insulation-Testing Multimeters
- GDS Family Name: Electrical Power Testing
- GDS Segment Name: Test Instruments
- UNSPSC: 41113628
- UNSPSC Class ID: 36
- UNSPSC Commodity Name: Electrical measuring and testing equipment
- UNSPSC Commodity ID: 28
- UNSPSC Commodity Name: Megohmmeters
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
