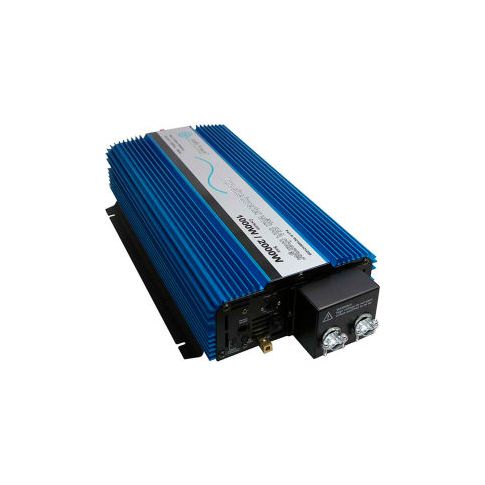

AIMS Power™ Pure Sine Inverter Charger Hardwire Only 1000 Watt 83.33 Amp PIC100012120S

This item is NOT returnable.

This aims 1000 watt pure sine inverter charger features an easy hardwire terminal for ac input and output. Its simple design makes for an easy install and includes all protections and has a selectable battery charger. Perfect for an rv boat sump pumps and other applications that use city power and inverter power. Once this inverter is installed it will automatically go back an forth between city power and inverter power. If city power is lost the inverter will automatically keep your devices running as long as the inverter has battery power. No frills economical and easy to use. Features ul style""margin-top0px; padding-top 5px; padding-bottom 5px;"" continuous output power 1000 watts surge power capability (peak power) 2000 watts ac inverter transfer time 20ms transfer/bypass 10 amps breaker 25 amps dc input / operating voltage 10-16 volts ac input voltage range 120 volts ac +/- 10% output voltage 120 volts ac output frequency 60 hz output wave form pure sine wave (thd 3%) over voltage shutdown 16 +/- 0.5 volts battery low voltage alarm 9.8 +/- 0.3 volts battery low voltage shutdown 9.5 +/- 0.5 volts battery overcharge protection voltage 14.4 volts battery float charge voltage 13.5 volts no load current 1.2a no load minimum operating temperature 32 degrees fahrenheit unit weight 12.1 lbs shipping weight 15lbs unit dimensions 17 ""x9 ""x 4"" selectable 25a or 55a battery charger (gel agm lead not for lithium) built in transfer switch pure sine wave conformal coated circuit board ac direct connect terminal block efficiency 86% 90% over load and short circuit protection on/off switch dual cooling fans thermally controlled instruction manual 1 year tech support 1 year warranty parts and labor replacement optional remote switch available (part# remotehf)

Additional Information

• UPC: 840271003160
• UNSPSC: 39121006
• Brand: Aims Operating Corp
• Package Quantity: 1
• Country of Origin: CN
• FOB Origin: NV
• Ships by: PARCEL
• Comes in a kit: No
• Newly added to catalog: No
• Item is on Clearance: No
• Contains Hazardous Materials: No
• CA Proposition 65 Applies: Yes
• Package Length: 24.00
• Package Width: 12.00
• Package Height: 6.00
• Package Weight: 15.00
