AIMS Power™ AC Converter & Battery Charger 25 Amp CON120AC36/48DC

This item is NOT returnable.

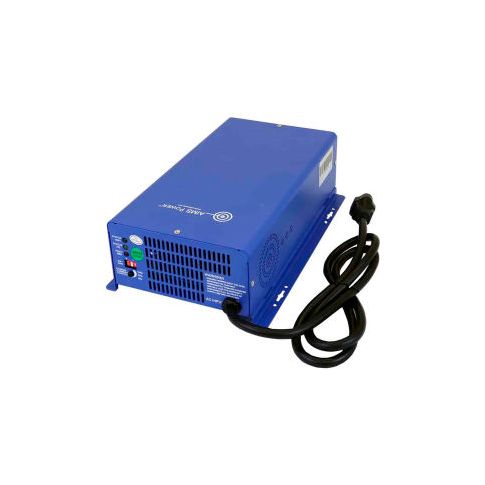

Boasting versatility and a high charging capacity the aims 36v and 48v ac 25/18.5-amp converter/battery charger from aims power™ provides wide latitude to meet the demands of many applications. This unit's broad ac input range of 70vac to 145vac can handle many applications and battery technologies. Selectable dip switch for 36vdc or 48vdc battery banks. Useful with generators and shore power and charges batteries including open lead acid agm gel and lifep04. This unit's 25/18.5 amp charging capacity gets the job done in a hurry. Ideal for golf carts rvs boats campers and many other applications. Reverse-polarity over-voltage and under-voltage protections provide peace of mind along with short-circuit and over-temperature safeguards. Features ul style""margin-top0px; padding-top 5px; padding-bottom 5px;"" large charging capacity design (25 amp for 36vdc; 17.5 amp for 48vdc) charges a 100 amp hour battery in under an hour up to 90% charge power supply up to 25 amps at 36vdc or 18.75 amps at 48vdc three stage smart charger with variable charging voltage algorithm for maximizing battery life (bulk absorb and float) 4 pre-programmed charging algorithms using the dip switches for the most common charging profiles charges lead acid agm gel and lifepo4 batteries adjustable charge current control dial to safely charge smaller battery (s) dip switch for voltage selection wide input voltage range 70vac to 145vac for unstable inputs reverse polarity over voltage under voltage over temperature short circuit protections high ac to dc converting efficiency design 80% thermal and load based fan includes battery temperature sensor port to help maintain the life of the battery(s) (battery temperature sensor not included) ac input cord 4ft 1 year warranty

Additional Information

• UPC: 840271005744
• UNSPSC: 39121006
• Brand: Aims Operating Corp
• Package Quantity: 1
• Country of Origin: CN
• FOB Origin: NV
• Ships by: PARCEL
• Comes in a kit: No
• Newly added to catalog: No
• Item is on Clearance: No
• Contains Hazardous Materials: No
• CA Proposition 65 Applies: Yes
• Package Length: 16.00
• Package Width: 10.00
• Package Height: 6.00
• Package Weight: 8.00
