Cabl Pull Swtch 15A Dobl End 25 Lbs TCDB MPN:AFU0333-66
Free Shipping
In Stock

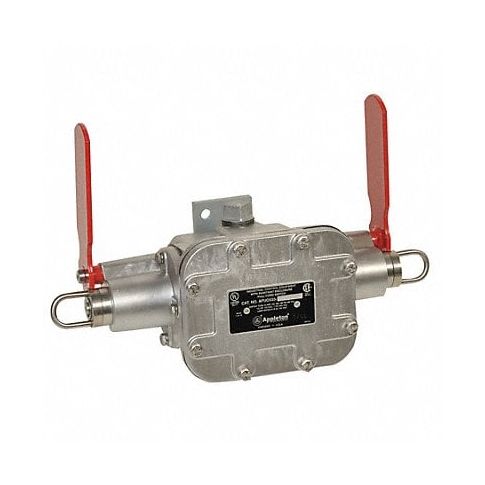

The Emergency Cable Pull Switch by Appleton Electric is a durable and reliable device designed to help users quickly initiate emergency stop or normal stop actions in various industrial settings. Featuring a cast-aluminum housing and torsion spring for positive flag arm actuation, this switch ensures consistent performance in demanding environments. Its double-ended mounting style makes installation easy, while the AC contact rating of 15A @ 120/240/480/600V AC ensures compatibility with a wide range of systems. With its 1NC-DB/1NO contact form and intended use in steel mills, automotive assembly lines, warehouses, loading docks, and other industrial processes, this emergency switch is an essential component for enhancing safety and productivity.
Top product features:
- Double-ended mounting style
- AC contact rating of 15A @ 120/240/480/600V AC
- Cast-aluminum housing and torsion spring for positive flag arm actuation.
Top product applications:
- Emergency stop or normal stop signaling in industrial environments
- Steel mills and automotive assembly lines for safety critical systems
- Warehouses and loading docks to prevent accidents during material handling operations
Technical Specifications
- Item Emergency Cable Pull Switch
- Switch Function Maintained
- Mounting Style Double End
- AC Contact Rating 15A @ 120/240/480/600V AC
- Contact Form 1NC-DB/1NO
- Reset Actuator
- Max. Cable Span 200 ft
- Operating Force 25 lb
- NEMA Rating 12, 3, 4, 4X
- Indicator Flag Arm
- Cable Connection Location Left and Right
- Thermal Amperage 15 A
- Length 16.7 in
- Width 11.0 in
- Depth 7.7 in
- Switching Ability Dual Cable
- DC Contact Rating 0.4A @ 230 V DC, 0.8A @ 115V DC
- Min. Current Not Applicable
- Case Material Cast Aluminum
- Wiring Entry Two 1 in Conduit Openings
- IP Rating Not Rated
- For Use With Conveyor Control Switch
- Standards UL 1203, UL 508, UL 698
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: AFU033366
- MPN: AFU0333-66
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509065
- GDS Category Name: Cable Pull Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121505
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Snap switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC Category: Switches
