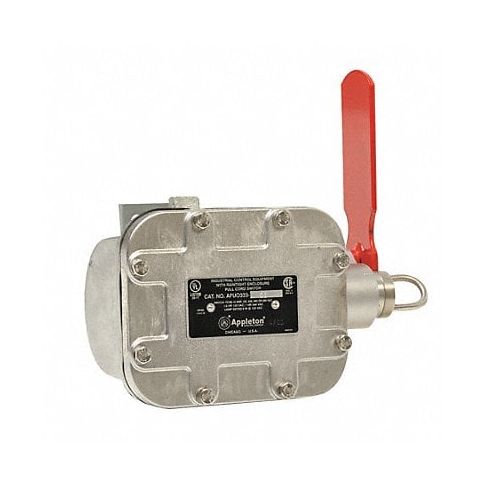

Cable Pull Switch 20A Right 15 lbs SPDT MPN:AFU0333-07
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-10k860
Cable Pull Switch 20A Right 15 lbs SPDT
The Cable Pull Switch 20A Right 15 lbs SPDT from Appleton Electric is an essential component in various industrial settings where emergency or normal stop functions are required. Its sturdy cast-aluminum housing ensures durability and longevity, while the torsion spring allows for positive flag arm actuation. With a 20A AC contact rating, this switch can handle high power demands in applications such as steel mills, automotive assembly lines, warehouses, loading docks, and more. Its single end mounting style ensures easy installation and its 1NC/1NO contact form provides reliable operation. With this switch, users can have peace of mind knowing that their machinery or equipment is protected in case of an emergency stop or normal stop.
Top product features:
- Sturdy cast-aluminum housing for durability and longevity
- Positive flag arm actuation for reliable operation
- Single end mounting style for easy installation
Top product applications:
- Emergency stop function in industrial settings
- Normal stop function in manufacturing and production lines
- Alarm or computer interface capabilities in monitoring systems
This cable pull switch is designed to help users signal an emergency stop or normal stop where alarm or computer interface capabilities are needed. It features cast-aluminum housing and a torsion spring for positive flag arm actuation. Use in steel mills, automotive assembly lines, warehouses, loading docks, and various industrial processes.
Technical Specifications
- Item Emergency Cable Pull Switch
- Switch Function Maintained
- Mounting Style Single End
- AC Contact Rating 20A @ 125/250/480V AC
- Contact Form 1NC/1NO
- Reset Actuator
- Max. Cable Span 200 ft
- Operating Force 15 lb
- NEMA Rating 12, 3, 4, 4X
- Indicator Flag Arm
- Cable Connection Location Right
- Thermal Amperage 20 A
- Length 11.5 in
- Width 8.2 in
- Depth 7.7 in
- Switching Ability Single Cable
- DC Contact Rating 0.25A @ 250 V DC, 0.5A @ 125 V DC
- Min. Current Not Applicable
- Case Material Cast Aluminum
- Wiring Entry Two 1 in Conduit Openings
- IP Rating Not Rated
- For Use With Conveyor Control Switch
- Standards UL 1203, UL 508, UL 698
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: AFU033307
- MPN: AFU0333-07
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Cable Pull Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121505
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Snap switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
