Cable Pull Switch 15A Right 25 lbs TCDB MPN:AFU0333-06
Free Shipping
In Stock

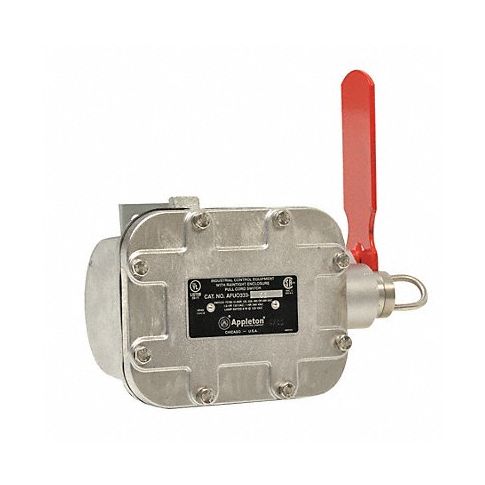

The Appleton Electric Cable Pull Switch is a versatile device designed to provide reliable emergency stopping solutions for various industries. This robust switch is ideal for signaling an emergency stop or normal stop with alarm or computer interface capabilities in settings such as steel mills, automotive assembly lines, warehouses, and loading docks. With its sturdy cast-aluminum housing and torsion spring for positive flag arm actuation, you can count on the Cable Pull Switch to deliver smooth and dependable performance time after time. Additionally, its single end mounting style ensures easy installation in any setting, while its 15A AC contact rating allows for use with various voltage settings (120/240/480/600V AC). Choose the Appleton Electric Cable Pull Switch for optimal safety and control in your facility.
Top product features:
- Cast-aluminum housing for durability and reliability
- Torsion spring for positive flag arm actuation
- Single end mounting style for easy installation Electrical
Top product applications:
- Emergency stop signals in industries with heavy machinery or hazardous working conditions
- Normal stop signals to control equipment or machines in manufacturing facilities or production lines
- Alarm indicators for security or safety systems, such as fire alarms or access control Electrical
Technical Specifications
- Item Emergency Cable Pull Switch
- Switch Function Maintained
- Mounting Style Single End
- AC Contact Rating 15A @ 120/240/480/600V AC
- Contact Form 1NC-DB/1NO
- Reset Actuator
- Max. Cable Span 200 ft
- Operating Force 25 lb
- NEMA Rating 12, 3, 4, 4X
- Indicator Flag Arm
- Cable Connection Location Right
- Thermal Amperage 15 A
- Length 11.5 in
- Width 8.2 in
- Depth 7.7 in
- Switching Ability Single Cable
- DC Contact Rating 0.4A @ 230 V DC, 0.8A @ 115V DC
- Min. Current Not Applicable
- Case Material Cast Aluminum
- Wiring Entry Two 1 in Conduit Openings
- IP Rating Not Rated
- For Use With Conveyor Control Switch
- Standards UL 1203, UL 508, UL 698
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: AFU033306
- MPN: AFU0333-06
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509065
- GDS Category Name: Cable Pull Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121505
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Snap switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
