Cabl Pull Swtch 20A Dobl End 25 Lbs SPDT MPN:AFU0333-88
Free Shipping
In Stock

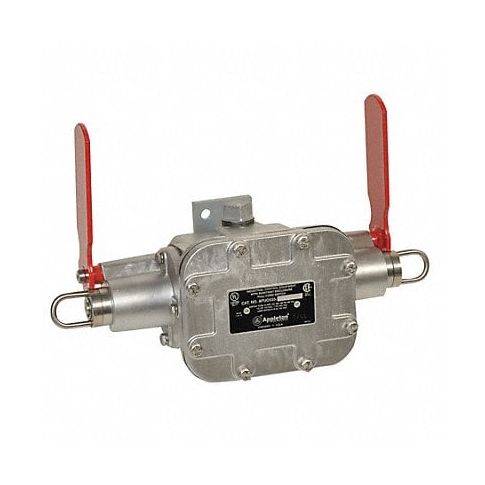

The Emergency Cable Pull Switch - Double End, Maintained Function, 20A AC Contact Rating, 1NC/1NO, Cast-Aluminum Housing from Appleton Electric is the perfect solution for signaling emergency stops or normal stops in industrial settings. Its cast-aluminum housing provides durability and longevity, while the torsion spring ensures positive flag arm actuation. This switch is ideal for use in steel mills, automotive assembly lines, warehouses, loading docks, and various industrial processes where reliable signaling is essential. The double end mounting style allows for flexibility in installation, and the 20A AC contact rating ensures compatibility with a range of electrical systems. With its maintained function and 1NC/1NO contact form, this switch is perfect for use as an emergency stop or normal stop signal, providing peace of mind and reliability in even the most demanding environments.
Top product features:
- Cast-aluminum housing provides durability and longevity in harsh industrial environments.
- Double end mounting style allows for flexibility in installation and usage in multiple locations.
- 1NC/1NO contact form provides reliable signaling for use as an emergency stop or normal stop signal.
Top product applications:
- Use in steel mills for signaling emergency stops or normal stops in heavy machinery and equipment.
- Automotive assembly lines to ensure safety during manufacturing processes where alarms or computer interface are necessary.
- Warehouses, loading docks, and various industrial processes for use in any industrial environment where reliable emergency or stop signaling is required.
Technical Specifications
- Item Emergency Cable Pull Switch
- Switch Function Maintained
- Mounting Style Double End
- AC Contact Rating 20A @ 125/250/480V AC
- Contact Form 1NC/1NO
- Reset Actuator
- Max. Cable Span 200 ft
- Operating Force 25 lb
- NEMA Rating 12, 3, 4, 4X
- Indicator Flag Arm
- Cable Connection Location Left and Right
- Thermal Amperage 20 A
- Length 16.7 in
- Width 11.0 in
- Depth 7.7 in
- Switching Ability Dual Cable
- DC Contact Rating 0.25A @ 250 V DC, 0.5A @ 125 V DC
- Min. Current Not Applicable
- Case Material Cast Aluminum
- Wiring Entry Two 1 in Conduit Openings
- IP Rating Not Rated
- For Use With Conveyor Control Switch
- Standards UL 1203, UL 508, UL 698
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: AFU033388
- MPN: AFU0333-88
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509065
- GDS Category Name: Cable Pull Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121505
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Snap switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
