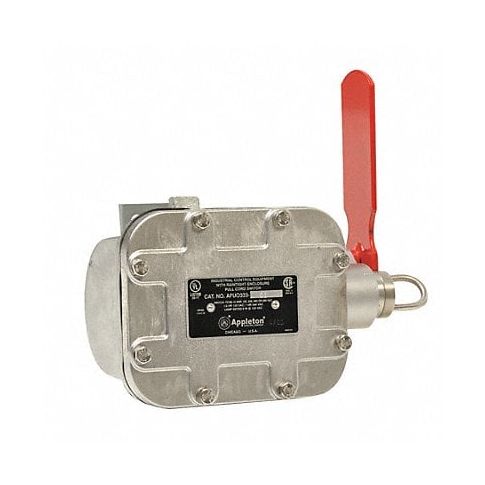

Cable Pull Sw HazLoc Right 25 Lbs SPDT MPN:AFUX0333-04
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-10k868
Cable Pull Sw HazLoc Right 25 Lbs SPDT
Introducing our Emergency Cable Pull Switch with Maintained Function from Appleton Electric, perfect for use in industrial settings where a single cable is required to signal an emergency stop or normal stop. Its durable cast-aluminum housing and torsion spring ensure positive flag arm actuation, providing the strength and reliability you need for your critical operations. Use it in steel mills, automotive assembly lines, warehouses, loading docks, and other high-risk environments where emergency stopping mechanisms are essential. Choose this Emergency Cable Pull Switch with Maintained Function for a reliable solution that can handle the toughest conditions and keep your workers safe!
Top product features:
- Cast-aluminum housing for durability and strength
- Torsion spring for positive flag arm actuation
- Capability to signal an emergency stop or normal stop
Top product applications:
- Steel mills to signal emergency stops in production lines or machinery where operators need immediate attention.
- Automotive assembly lines to indicate an issue in the manufacturing process, stopping the line until the problem is fixed and avoiding potential damage to the finished product.
- Warehouses to initiate a stop in case of forklift accidents or other incidents involving equipment or personnel.
This cable pull switch is designed to help users signal an emergency stop or normal stop where alarm or computer interface capabilities are needed. It features cast-aluminum housing and a torsion spring for positive flag arm actuation. Use in steel mills, automotive assembly lines, warehouses, loading docks, and various industrial processes.
Technical Specifications
- Item Emergency Cable Pull Switch
- Switch Function Maintained
- Switching Ability Single Cable
- Operating Force 25 lb
- Mounting Style Right
- Contact Form SPDT
- NEMA Rating 7CD, 9EFG
- AC Contact Rating 20A @ 125/250/480V AC
- DC Contact Rating 0.25A @ 250V DC, 0.50A @ 125V DC
- HP 1.0 hp @ 125V AC, 2.0 hp @ 250V AC
- Indicator Flag Arm
- Reset Actuator
- Length 11.5 in
- Width 8.2 in
- Depth 7.7 in
- Max. Cable Span 200 ft
- Case Material Cast Aluminum
- Wiring Entry Two 1 in Conduit Openings
- Standards UL 1203, UL 508, UL 698
- Safety Rating UL Listed for Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: AFUX033304
- MPN: AFUX0333-04
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509065
- GDS Category Name: Hazardous Location Cable Pull Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121505
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Snap switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
