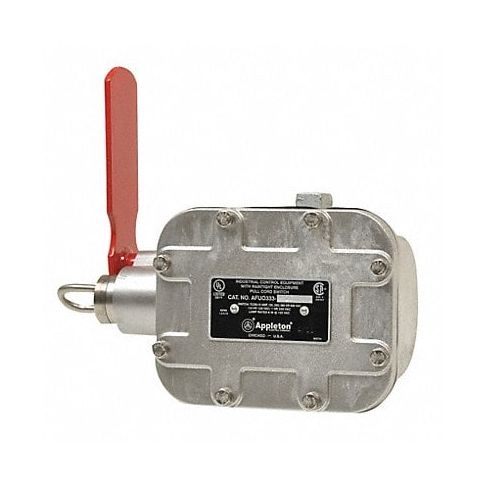

Cable Pull Sw HazLoc Left 25 Lbs TCDB MPN:AFUX0333-20

This cable pull switch is designed to help users signal an emergency stop or normal stop where alarm or computer interface capabilities are needed. It features cast-aluminum housing and a torsion spring for positive flag arm actuation. Use in steel mills, automotive assembly lines, warehouses, loading docks, and various industrial processes.

Technical Specifications

• Item Emergency Cable Pull Switch
• Switch Function Maintained
• Switching Ability Single Cable
• Operating Force 25 lb
• Mounting Style Left
• Contact Form NO/NC-DB
• NEMA Rating 7CD, 9EFG
• AC Contact Rating 15A @ 120/240/480/600V AC
• DC Contact Rating 0.40A @ 230V DC, 0.80A @ 115V DC
• HP 0.5 hp @ 125V AC, 1.0 hp @ 250V AC
• Indicator Flag Arm
• Reset Actuator
• Length 11.5 in
• Width 8.2 in
• Depth 7.7 in
• Max. Cable Span 200 ft
• Case Material Cast Aluminum
• Wiring Entry Two 1 in Conduit Openings
• Standards UL 1203, UL 508, UL 698
• Safety Rating UL Listed for Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III

Manufacturer Details

• Manufacturer: Appleton Electric
• Condensed Mfg Number: AFUX033320
• MPN: AFUX0333-20

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536509065
• GDS Category Name: Hazardous Location Cable Pull Switches
• GDS Family Name: Switches
• GDS Segment Name: Electrical
• UNSPSC: 39121505
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 05
• UNSPSC Commodity Name: Snap switches
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
