Cable Pull Sw HazLoc Dbl End 15Lbs SPDT MPN:AFUX0333-33
Free Shipping
In Stock

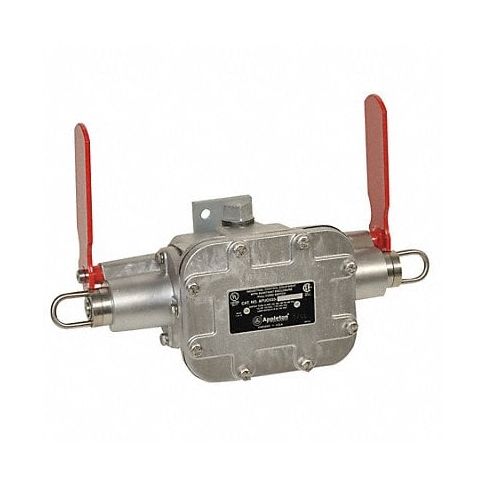

Introducing Appleton Electric's Cable Pull Switch - HazLoc Double End with a rating of 15Lbs SPDT, designed for signaling emergency stops or normal stop operations in hazardous locations where alarm or computer interface capabilities are required. This heavy-duty switch features cast aluminum housing and torsion spring actuation for positive flag arm movement ensuring long-lasting durability in harsh industrial environments. The dual cable switching ability, double end mounting style makes it an ideal choice for various industries such as steel mills, automotive assembly lines, warehouses, loading docks, and many more. With a 15lb operating force and UL HazLoc certification, the Cable Pull Switch guarantees reliable performance and safety in any hazardous location, minimizing downtime and maximizing productivity.
Top product features:
- Durable Cast Aluminum Housing
- Torsion Spring for Positive Flag Arm Actuation
- Dual Cable Switching Ability
Top product applications:
- Emergency Stop Signaling in Hazardous Locations
- Normal Stop Signaling in Industrial Environments
- Use in Steel Mills or Automotive Assembly Lines
Technical Specifications
- Item Emergency Cable Pull Switch
- Switch Function Maintained
- Switching Ability Dual Cable
- Operating Force 15 lb
- Mounting Style Double End
- Contact Form SPDT
- NEMA Rating 7CD, 9EFG
- AC Contact Rating 20A @ 125/250/480V AC
- DC Contact Rating 0.25A @ 250V DC, 0.50A @ 125V DC
- HP 1.0 hp @ 125V AC, 2.0 hp @ 250V AC
- Indicator Flag Arm
- Reset Actuator
- Length 16.7 in
- Width 11.0 in
- Depth 7.7 in
- Max. Cable Span 200 ft
- Case Material Cast Aluminum
- Wiring Entry Two 1 in Conduit Openings
- Standards UL 1203, UL 508, UL 698
- Safety Rating UL Listed for Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: AFUX033333
- MPN: AFUX0333-33
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509065
- GDS Category Name: Hazardous Location Cable Pull Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121505
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Snap switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
