Cable Pull Sw HazLoc Dbl End 25Lbs TCDB MPN:AFUX0333-22
Free Shipping
In Stock

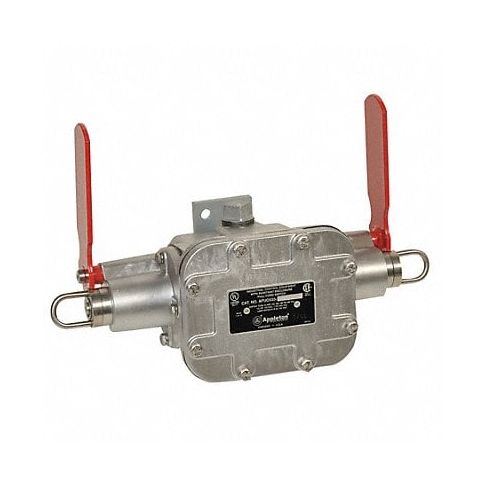

Introducing our Emergency Cable Pull Switch - HazLoc Double End 25Lbs TCDB from Appleton Electric! Perfect for industrial processes requiring alarm or computer interface capabilities, this durable cable pull switch is designed to signal an emergency stop or normal stop. With a cast-aluminum housing and torsion spring, you can rely on its positive flag arm actuation. Suitable for steel mills, automotive assembly lines, warehouses, loading docks, and various industrial processes, this switch offers maintained switching ability with dual cable options. Its operating force of 25 lbs ensures easy operation while the double-end mounting style provides added versatility. Invest in safety today with our Emergency Cable Pull Switch - HazLoc Double End 25Lbs TCDB from Appleton Electric!
Top product features:
- Torsion spring for positive flag arm actuation
- Suitable for various industrial processes
- Double-end mounting style
Top product applications:
- Emergency stop functions in industrial processes
- Signaling normal stops during production operations
- Initiating alarm or computer interface capabilities
Technical Specifications
- Item Emergency Cable Pull Switch
- Switch Function Maintained
- Switching Ability Dual Cable
- Operating Force 25 lb
- Mounting Style Double End
- Contact Form NO/NC-DB
- NEMA Rating 7CD, 9EFG
- AC Contact Rating 15A @ 120/240/480/600V AC
- DC Contact Rating 0.40A @ 230V DC, 0.80A @ 115V DC
- HP 0.5 hp @ 125V AC, 1.0 hp @ 250V AC
- Indicator Flag Arm
- Reset Actuator
- Length 16.7 in
- Width 11.0 in
- Depth 7.7 in
- Max. Cable Span 200 ft
- Case Material Cast Aluminum
- Wiring Entry Two 1 in Conduit Openings
- Standards UL 1203, UL 508, UL 698
- Safety Rating UL Listed for Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: AFUX033322
- MPN: AFUX0333-22
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Hazardous Location Cable Pull Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121505
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Snap switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
