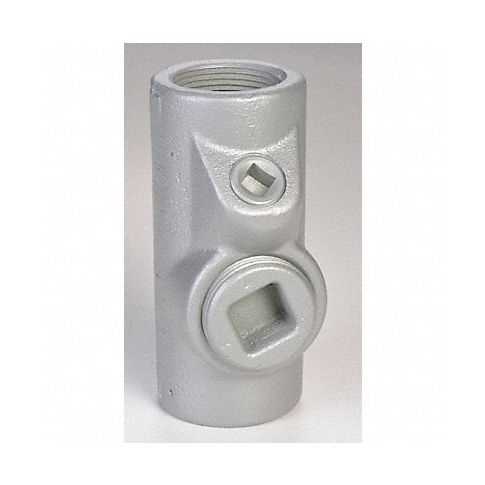

Sealing Fitting Iron Trade Size 1.5in MPN:EYF-150

Explosionproof, dust-ignitionproof, and raintight, this sealing fitting is for use with threaded rigid metal conduit and IMC. It prevents the passage of gases, vapors, or flames from one portion of a conduit system to another. It restricts any explosion to the sealed-off enclosure, and prevents pressure piling within the conduit system. A smooth, rounded integral bushing in each hub protects conductor insulation. The accurately tapped, tapered threads provide tight, rigid joints and ground continuity.

Technical Specifications

• Item - Conduit Fitting 25% Fill, Sealing Fitting
• Ends - Hazardous Fittings 1-1/2 in FNPT x 1-1/2 in FNPT
• Conduit Fitting Material Malleable Iron
• Conduit Orientation - Sealing Fitting Horizontal, Vertical
• Overall Length - Fitting 5 1/2 in
• Hazardous Location Rating Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
• Standards CSA C22.2 No 30, UL 886
• Application Prevent Passage Of Gases, Vapors Or Flames From One Portion Of Conduit Systems To Another

Manufacturer Details

• Manufacturer: Appleton Electric
• Condensed Mfg Number: EYF150
• MPN: EYF-150

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 7326908688
• GDS Category Name: Hazardous Location Sealing Fittings
• GDS Family Name: Conduit Fittings
• GDS Segment Name: Electrical
• UNSPSC: 39121202
• UNSPSC Class ID: 12
• UNSPSC Commodity Name: Wire management components and busways
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Electrical conduit
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
