Sealing Fitting Alum Trade Size 1.5in MPN:EYF-150AL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-10V012

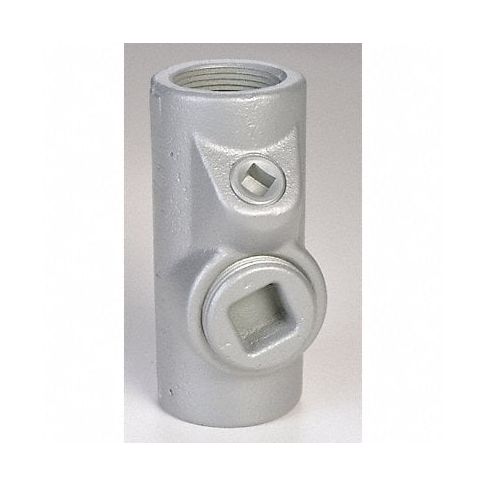

Sealing Fitting Alum Trade Size 1.5in
Appleton Electric's sealing fitting is designed for hazardous locations, preventing gas, vapor or flame passage between conduits while maintaining rigid joints and ground continuity. The smooth bushing protects conductor insulation, while accurately tapped threads provide tight, reliable connections. This aluminum fitting is perfect for industrial applications such as chemical plants and oil refineries, and its horizontal or vertical orientation makes it versatile enough to suit various installations. With 25% fill, this sealing fitting offers cost-effective protection for your hazardous environment, ensuring both safety and efficiency.
Top product features:
- Explosionproof and dust-ignitionproof design for hazardous locations
- Smooth bushing to protect conductor insulation
- Accurately tapped and tapered threads for tight, rigid joints and ground continuity.
Top product applications:
- Used in hazardous locations such as chemical plants and oil refineries to prevent gas, vapor or flame passage between conduits
- Ideal for vertical and horizontal conduit orientation configurations
- Designed specifically for use with threaded rigid metal conduit and intermediate metal conduit
Explosionproof, dust-ignitionproof, and raintight, this sealing fitting is for use with threaded rigid metal conduit and IMC. It prevents the passage of gases, vapors, or flames from one portion of a conduit system to another. It restricts any explosion to the sealed-off enclosure, and prevents pressure piling within the conduit system. A smooth, rounded integral bushing in each hub protects conductor insulation. The accurately tapped, tapered threads provide tight, rigid joints and ground continuity.
Technical Specifications
- Item - Conduit Fitting 25% Fill, Sealing Fitting
- Ends - Hazardous Fittings 1-1/2 in FNPT x 1-1/2 in FNPT
- Conduit Fitting Material Aluminum
- Conduit Orientation - Sealing Fitting Horizontal, Vertical
- Overall Length - Fitting 5 1/2 in
- Hazardous Location Rating Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
- Standards CSA C22.2 No 30, UL 886
- Application Prevent Passage Of Gases, Vapors Or Flames From One Portion Of Conduit Systems To Another
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EYF150AL
- MPN: EYF-150AL
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Hazardous Location Sealing Fittings
- GDS Family Name: Conduit Fittings
- GDS Segment Name: Electrical
- UNSPSC: 39121202
- UNSPSC Class ID: 12
- UNSPSC Commodity Name: Wire management components and busways
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Electrical conduit
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
