Sealing Fitting Alum Trade Size 3.5in MPN:EYF-350AL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-10V020
Sealing Fitting Alum Trade Size 3.5in

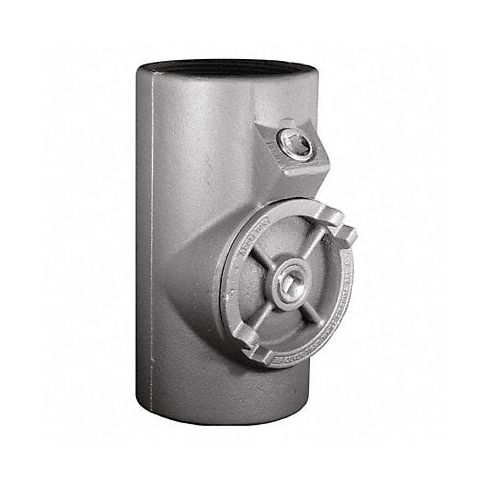

The Appleton Electric Sealing Fitting is designed to protect electrical systems from dangerous explosions or fires in hazardous locations. Made of durable aluminum, this fitting is suitable for horizontal or vertical conduit orientation and is available in a 3.5-inch size. Its sealing feature prevents the passage of flames or gases through the conduit system, ensuring safety and protection in areas where it's needed most. With accurate tapered threads, tight joints can be achieved for ground continuity. Use this fitting with threaded rigid metal conduit and IMC to safeguard your electrical setup from potential hazards.
Top product features:
- Explosionproof and dust-ignitionproof
- Raintight design for safety and protection
- Accurately tapped, tapered threads for tight, rigid joints and ground continuity
Top product applications:
- Used in hazardous locations where gas, dust, or flames may be present and need to be contained.
- Suitable for indoor and outdoor environments in industries like chemical, oil & gas, and mining.
- For installation with threaded rigid metal conduit (RMC) and intermediate metal conduit (IMC).
Explosionproof, dust-ignitionproof, and raintight, this sealing fitting is for use with threaded rigid metal conduit and IMC. It prevents the passage of gases, vapors, or flames from one portion of a conduit system to another. It restricts any explosion to the sealed-off enclosure, and prevents pressure piling within the conduit system. A smooth, rounded integral bushing in each hub protects conductor insulation. The accurately tapped, tapered threads provide tight, rigid joints and ground continuity.
Technical Specifications
- Item - Conduit Fitting 25% Fill, Sealing Fitting
- Ends - Hazardous Fittings 3-1/2 in FNPT x 3-1/2 in FNPT
- Conduit Fitting Material Aluminum
- Conduit Orientation - Sealing Fitting Horizontal, Vertical
- Overall Length - Fitting 8 15/16 in
- Hazardous Location Rating Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
- Standards CSA C22.2 No 30, UL 886
- Application Prevent Passage Of Gases, Vapors Or Flames From One Portion Of Conduit Systems To Another
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EYF350AL
- MPN: EYF-350AL
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Hazardous Location Sealing Fittings
- GDS Family Name: Conduit Fittings
- GDS Segment Name: Electrical
- UNSPSC: 39121202
- UNSPSC Class ID: 12
- UNSPSC Commodity Name: Wire management components and busways
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Electrical conduit
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 12:30pm UTC
Category: Conduit Fittings
