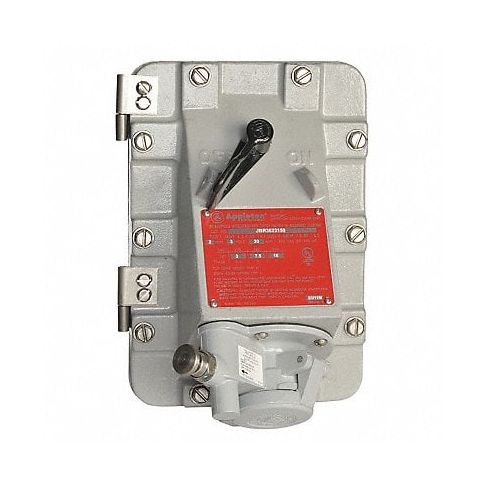

Receptacle 30A 3P 2W Alum UL 1010 600VAC MPN:JBR3023-150

For use in hazardous locations, this switched receptacle features a terminal for grounding connection, and a terminal block for line connections. It also features a prewired receptacle, disconnect switch, and O-ring gasket. It is designed to contain an internal explosion without causing an external hazard. It is also intended to help prevent the ignition of combustible dust.

Technical Specifications

• Item Receptacle
• Voltage 600V AC
• Hz 50-400
• Amps 30 A
• HP 20 hp
• Number of Wires 2
• Number of Poles 3
• Hub Size 1 1/2 in
• Mounting Box Copperfree Aluminum
• Material Copper-Free Aluminum
• Finish Epoxy Powder Coated
• NEMA Rating 3, 3R, 4, 4X, 7BCD, 9FG
• Standards UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed for Class I, Division 1 and 2, Groups B, C, D; Class II, Groups F, G; and Class III

Manufacturer Details

• Manufacturer: Appleton Electric
• Condensed Mfg Number: JBR3023150
• MPN: JBR3023-150

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8537109170
• GDS Category Name: Mechanical Interlock Devices
• GDS Family Name: Plugs and Receptacles
• GDS Segment Name: Electrical
• UNSPSC: 39121406
• UNSPSC Class ID: 14
• UNSPSC Commodity Name: Lugs connectors and terminals
• UNSPSC Commodity ID: 06
• UNSPSC Commodity Name: Electrical receptacles
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
