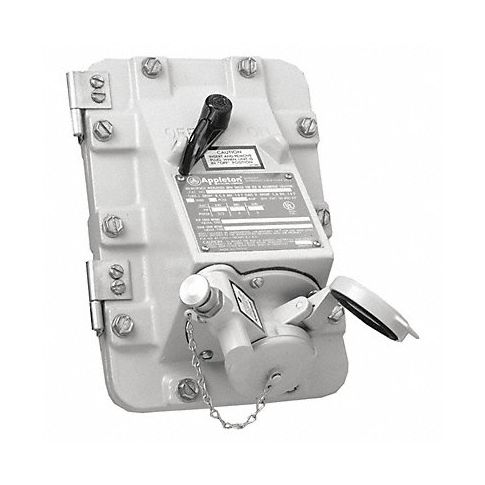

Receptacle 30A 4P 3W Alum UL 1010 600VAC MPN:JBR3034-150
Free Shipping
In Stock
Introducing Appleton Electric's Receptacle 30A 4P 3W Alum UL 1010 600VAC - the perfect solution for hazardous location installations requiring a safe and reliable electrical connection. This prewired receptacle comes with a disconnect switch, grounding terminal, and O-ring gasket to ensure that it meets all necessary safety requirements. Its sturdy aluminum construction makes it durable and resistant to corrosion, while its 30A capacity can handle even the heaviest electrical loads. With its 20 hp rating, this receptacle is ideal for a variety of applications, including commercial and industrial spaces where power demand is high. Plus, its internal explosion-proof design makes it a top choice for locations with potentially hazardous materials or environments. Invest in the safety and efficiency of your space with Appleton Electric's Receptacle 30A 4P 3W Alum UL 1010 600VAC.
Top product features:
- Explosion-proof design
- Grounding terminal and terminal block for line connections
- Prewired receptacle and disconnect switch
Top product applications:
- Hazardous location installations
- Commercial and industrial spaces
- Power-intensive environments
Technical Specifications
- Item Receptacle
- Voltage 600V AC
- Hz 50-400
- Amps 30 A
- HP 20 hp
- Number of Wires 3
- Number of Poles 4
- Hub Size 1 1/2 in
- Mounting Box Copperfree Aluminum
- Material Copper-Free Aluminum
- Finish Epoxy Powder Coated
- NEMA Rating 3, 3R, 4, 4X, 7BCD, 9FG
- Standards UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed for Class I, Division 1 and 2, Groups B, C, D; Class II, Groups F, G; and Class III
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: JBR3034150
- MPN: JBR3034-150
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Mechanical Interlock Devices
- GDS Family Name: Plugs and Receptacles
- GDS Segment Name: Electrical
- UNSPSC: 39121406
- UNSPSC Class ID: 14
- UNSPSC Commodity Name: Lugs connectors and terminals
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Electrical receptacles
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
