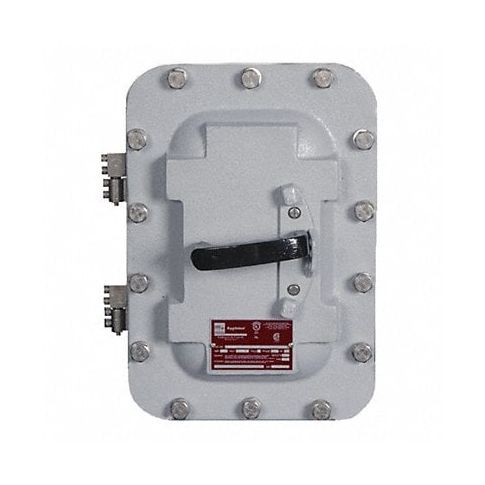

Enclosed Circuit Breaker 3P 35A 480VAC MPN:AEAB13435C
Free Shipping
In Stock
The enclosed circuit breaker from Appleton Electric is an essential component for any electrical system operating in hazardous locations. This fully enclosed device contains internal sparks or explosions to protect both equipment and humans. Equipped with a 3-pole, 35A rating, and an AC voltage of 480V, this circuit breaker offers the power needed for demanding applications while maintaining a safe and secure environment. Class I, Divisions 1 and 2, Groups B, C, D; Class II, Divisions 1 and 2, Groups E, F, G; and Class III hazardous locations certifications make this product suitable for handling explosive or flammable materials. Applications in oil refineries, chemical plants, paper mills, textile mills, and more benefit from the reliable protection and efficiency provided by this circuit breaker.
- Item Hazardous Location Circuit Breaker
- Number of Poles 3
- Amps 35 A
- AC Voltage Rating
Top product features:
- Fully enclosed to contain internal sparks or explosions
- Rated for Class I, Divisions 1 and 2, Groups B, C, D; Class II, Divisions 1 and 2, Groups E, F, G; and Class III hazardous locations
- Interrupt current overloads to protect electrical equipment from overloads and short circuits.
Top product applications:
- Oil refineries and petrochemical plants
- Chemical and pharmaceutical manufacturing facilities
- Pulp and paper mills
Technical Specifications
- Item Hazardous Location Circuit Breaker
- Number of Poles 3
- Amps 35 A
- AC Voltage Rating 480V AC
- Max. AIR Rating 18kA at 240V AC
- Circuit Breaker Type Standard
- Frame Size 100/EHD
- Circuit Breaker Actuator Non-Interchangeable Trip
- Circuit Breaker Included Cutler-Hammer
- DC Voltage Rating 125/250V DC
- Terminal Connection Box Lug
- Min. Wire Size 14 AWG
- Max. Wire Size 1/0 AWG
- Housing Material Copper-Free Aluminum
- Enclosure Rating NEMA 4, 4X
- Length 15.25 in
- Width 10.63 in
- Depth 8.84 in
- Instantaneous Trip Fixed
- Conduit Size 1 1/2 in
- Number of Outlets 2
- Standards C22.2 No. 25, C22.2 No. 30, C22.2 No. 4, C22.2 No. 5, CSA Certified (800A Max): 1324917, CSA Standard: C22.2 No. 0, UL Classified: E84577, UL Standard: UL 1203
- Features Dust-Ignitionproof, Explosionproof, External Flange Maximizes Internal Space, External Operating Handle with Stops for Limiting Handle Travel, Standard Outlets Top and Bottom for Line and Load Wiring, Watertight
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: AEAB13435C
- MPN: AEAB13435C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200040
- GDS Category Name: Hazardous Location Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
