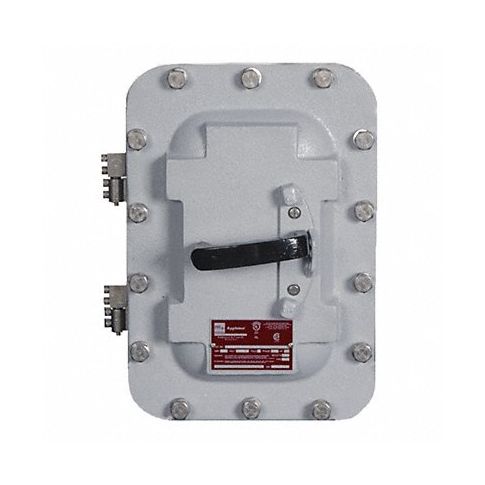

Enclosed Circuit Breaker 3P 200A 600VAC MPN:AEEB23620C
Free Shipping
In Stock
Introducing Appleton Electric's enclosed circuit breaker designed specifically for hazardous locations. Ideal for industrial environments handling hazardous materials, these fully enclosed circuit breakers prevent internal sparks or explosions from igniting surrounding combustible materials. With a rating of Class I, Divisions 1 and 2, Groups B, C, D; Class II, Divisions 1 and 2, Groups E, F, G; and Class III, these circuit breakers provide reliable protection against overloads and short circuits in hazardous locations. With three poles, 200 amps, 600V AC voltage rating, and max. AIR rating, these circuit breakers are built to withstand tough conditions while offering cost-effective and efficient operation for industries such as oil & gas, chemical, and pharmaceutical manufacturing. Choose Appleton Electric's enclosed hazardous location circuit breaker for unmatched safety, reliability, and durability in demanding applications.
Top product features:
- Fully enclosed to contain internal sparks or explosions
- Rated for Class I, Divisions 1 and 2, Groups B, C, D; Class II, Divisions 1 and 2, Groups E, F, G; and Class III hazardous locations
- Interrupt current overloads to protect electrical equipment from overloads and short circuits
Top product applications:
- Industrial settings handling hazardous materials or storing them
- Factories with high risk of sparks or explosions
- Oil and gas extraction sites where flammable substances are present
Technical Specifications
- Item Hazardous Location Circuit Breaker
- Number of Poles 3
- Amps 200 A
- AC Voltage Rating 600V AC
- Max. AIR Rating 65kA at 240V AC
- Circuit Breaker Type Standard
- Frame Size 250/JD
- Circuit Breaker Actuator Non-Interchangeable Trip
- Circuit Breaker Included Cutler-Hammer
- DC Voltage Rating 125/250V DC
- Terminal Connection Ground Lug
- Min. Wire Size 4 AWG
- Max. Wire Size 350 MCM
- Housing Material Copper-Free Aluminum
- Enclosure Rating NEMA 4, 4X
- Length 29.5 in
- Width 16.0 in
- Depth 12.28 in
- Instantaneous Trip Fixed
- Conduit Size 3 in
- Number of Outlets 2
- Standards C22.2 No. 25, C22.2 No. 30, C22.2 No. 4, C22.2 No. 5, CSA Certified (800A Max): 1324917, CSA Standard: C22.2 No. 0, UL Classified: E84577, UL Standard: UL 1203
- Features Dust-Ignitionproof, Explosionproof, External Flange Maximizes Internal Space, External Operating Handle with Stops for Limiting Handle Travel, Standard Outlets Top and Bottom for Line and Load Wiring, Watertight
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: AEEB23620C
- MPN: AEEB23620C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200040
- GDS Category Name: Hazardous Location Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
