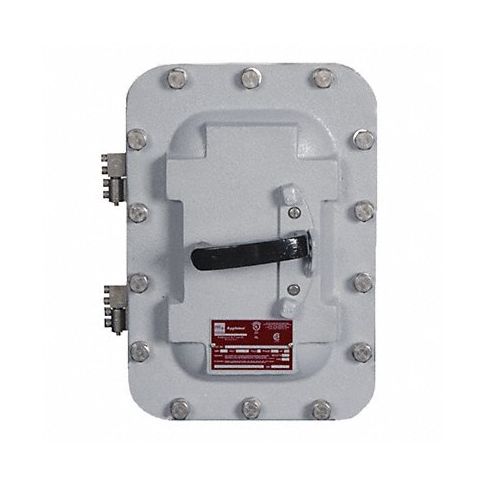

Enclosed Circuit Breaker 3P 250A 600VAC MPN:AEFB23625C

Hazardous location circuit breakers are fully enclosed to contain internal sparks or explosions. They are suited for areas where hazardous materials are handled or stored. These circuit breakers are rated for Class I, Divisions 1 and 2, Groups B, C, D; Class II, Divisions 1 and 2, Groups E, F, G; and Class III hazardous locations. They interrupt current overloads to protect electrical equipment from overloads and short circuits.

Technical Specifications

• Item Hazardous Location Circuit Breaker
• Number of Poles 3
• Amps 250 A
• AC Voltage Rating 600V AC
• Max. AIR Rating 65kA at 240V AC
• Circuit Breaker Type Standard
• Frame Size 250/JD
• Circuit Breaker Actuator Non-Interchangeable Trip
• Circuit Breaker Included Cutler-Hammer
• DC Voltage Rating 125/250V DC
• Terminal Connection Ground Lug
• Min. Wire Size 4 AWG
• Max. Wire Size 350 MCM
• Housing Material Copper-Free Aluminum
• Enclosure Rating NEMA 4, 4X
• Length 35.0 in
• Width 16.38 in
• Depth 12.34 in
• Instantaneous Trip Fixed
• Conduit Size 3 in
• Number of Outlets 4
• Standards C22.2 No. 25, C22.2 No. 30, C22.2 No. 4, C22.2 No. 5, CSA Certified (800A Max): 1324917, CSA Standard: C22.2 No. 0, UL Classified: E84577, UL Standard: UL 1203
• Features Dust-Ignitionproof, Explosionproof, External Flange Maximizes Internal Space, External Operating Handle with Stops for Limiting Handle Travel, Standard Outlets Top and Bottom for Line and Load Wiring, Watertight

Manufacturer Details

• Manufacturer: Appleton Electric
• Condensed Mfg Number: AEFB23625C
• MPN: AEFB23625C

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536200040
• GDS Category Name: Hazardous Location Circuit Breakers
• GDS Family Name: Distribution
• GDS Segment Name: Electrical
• UNSPSC: 39121601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Circuit protection devices and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Circuit breakers
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
