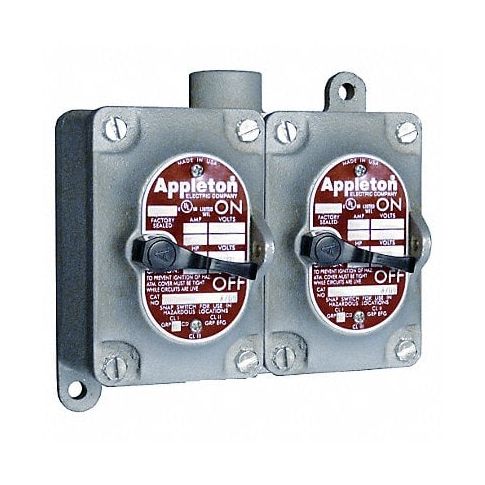

Tumbler Switch EDS Series 2 Gangs 1-Pole MPN:EDS275-F1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-13V012
Tumbler Switch EDS Series 2 Gangs 1-Pole
Tumbler Switch EDS Series offers advanced technology providing a reliable on/off solution boasting 20A, 250V AC ratings making it ideal for lighting applications, garages or equipment controls with an elegant silver-chrome housing enclosure; featuring 3/4 diameter knob for easy visibility and tactile experience. Its sturdy construction offers endurance under harsh conditions while keeping consumers safe through its self-resetting property providing protection against overloads; ideal for homes, businesses or light industrial settings available at an affordable price making it a top-tier investment for every establishment needing to regulate energy consumption while ensuring safety at all times.
This tumbler switch is designed to help prevent arcing during connect and disconnect operation of lighting and light power loads. It is suitable for installation in chemical plants, refineries, and other process industries. Use in classified areas where ignitable vapors, gases, and combustible dusts are present.
Technical Specifications
- Item Tumbler Switch
- Type of Operator Front Operated
- Series EDS
- Number of Gangs 2
- Switch Type 1-Pole
- Amps 20 A
- Voltage 120 to 277V AC
- HP 1 hp @ 120V AC, 2 hp @ 240V AC
- Hub Style Dead-End
- Hub Size 3/4 in
- Mounting Mounting Holes
- Legend Markings On/Off
- Special Features Corrosion Resistant, Pad Lockable in the On or Off Position
- NEMA Rating 7C, 7D, 9E, 9F, 9G
- Standards UL 1203, UL 894
- Safety Rating Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
- Height 4 5/8 in
- Width 6 3/16 in
- Depth 4 11/16 in
- Body Material Malleable Iron
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EDS275F1
- MPN: EDS275-F1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509040
- GDS Category Name: Hazardous Location Tumbler Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121104
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Motor control centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC
Category: Switches
