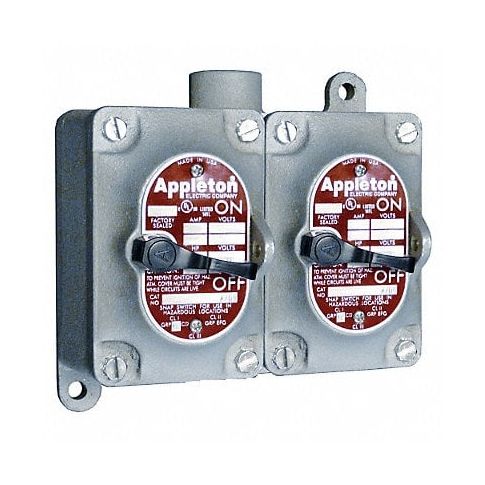

Tumbler Switch EDS Series 2 Gangs 2-Pole MPN:EDS328
Free Shipping
In Stock
Appleton Electric Tumbler Switch EDS Series is specifically designed for use in areas with explosive atmospheres, where there is a risk of ignition from flammable vapors, gases or combustible dusts. This robust switch prevents arc ignition during connecting and disconnecting operations for lighting and power loads, ensuring maximum safety for personnel and equipment. The two-gang, two-pole tumbler switch offers a front-operated mechanism that requires minimal force to operate, making it simple and easy to use. Its robust design makes it ideal for the most demanding applications in chemical plants, refineries, and other process industries where durability and safety are essential. With its ability to reduce the risk of arc ignition and the potential for explosion, Appleton Electric's Tumbler Switch EDS Series is an excellent solution for maintaining a safe and secure environment in hazardous locations.
Top product features:
- Explosion-proof design for use in hazardous locations
- Front-operated mechanism for ease of use
- Two-pole switch for versatile applications
Top product applications:
- Hazardous location lighting and power control in chemical plants and refineries
- Classified area control for industrial processes with potential ignition sources
- Explosion-proof switching for flammable gas or dust environments
Technical Specifications
- Item Tumbler Switch
- Type of Operator Front Operated
- Series EDS
- Number of Gangs 2
- Switch Type 2-Pole
- Amps 20 A
- Voltage 120 to 277V AC
- HP 1 hp @ 120V AC, 2 hp @ 240V AC
- Hub Style Dead-End
- Hub Size 1 in
- Mounting Mounting Holes
- Legend Markings On/Off
- Special Features Corrosion Resistant, Pad Lockable in the On or Off Position
- NEMA Rating 7C, 7D, 9E, 9F, 9G
- Standards UL 1203, UL 894
- Safety Rating Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
- Height 4 5/8 in
- Width 6 3/16 in
- Depth 4 11/16 in
- Body Material Malleable Iron
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EDS328
- MPN: EDS328
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509040
- GDS Category Name: Hazardous Location Tumbler Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121104
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Motor control centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
