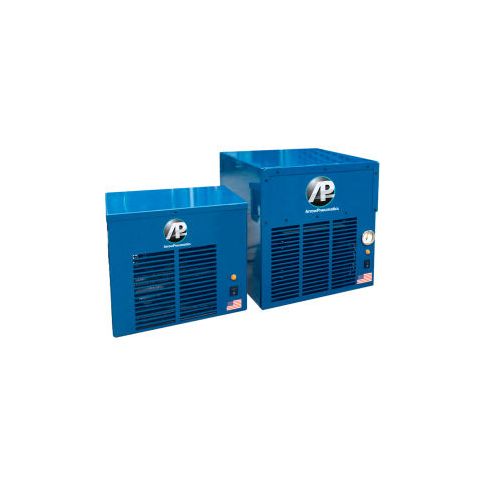

Arrow Pneumatics AR-40-A Non-Cycling Refrigerated Air Dryer 40 cfm 1-Phase 115/230V AR-40-A
Arrow Pneumatics AR-40-A Non-Cycling Refrigerated Air Dryer 40 cfm 1-Phase 115/230V AR-40-A
Arrow Pneumatics AR-40-A, Non-Cycling Refrigerated Air Dryer, 40 cfm, 1-Phase 115/230V
Arrow refrigerated air dryers remove water and contaminants before they can cause damage to your equipment or disrupt operations. The dryers supply clean, dry air with a low-pressure dew point. The dryer uses a direct heat transfer method using copper tubing and heat exchangers that are packaged in a tightly-foam insulated cabinet to maximize heat transfer and to prevent condensation within the cabinet.
Features:
Arrow refrigerated air dryers remove water and contaminants before they can cause damage to your equipment or disrupt operations. The dryers supply clean, dry air with a low-pressure dew point. The dryer uses a direct heat transfer method using copper tubing and heat exchangers that are packaged in a tightly-foam insulated cabinet to maximize heat transfer and to prevent condensation within the cabinet.
Features:
- 40 SCFM Non-Cycling Refrigerated Dryer
- Lowers dew point to 38°F
- 115/230V Single Phase
- Compact Design
- Enclosed in a high-quality, powder-coated, welded, metal cabinet
- It is recommended to install a pre filter (F376W) and after filter (F508-08W).
Product Specifications
- BRANDArrow Pneumatics
- MANUFACTURERS PART NUMBERAR-40-A
- PHASE1
- VOLTAGE115/230
- CFM40
- MAX PSI250
- WARRANTY5 Years from Date of Shipment
- WIDTH INCHES17-3/4
- HEIGHT INCHES18-1/2
- REFRIGERANTR-134A
- SAVINGSEveryday Low Price
- DEPTH INCHES19
- POST-FILTERNo- Recommend F508-08W
- PRE-FILTERNo - Recommend F376W
- PRESSURE DEW POINT38°F to 50°F
- CONSTRUCTIONCopper Tubing & Heat Exchanger
- COOLING METHODAir-Cooled
- DESCRIPTIONNon-Cycling Refrigerated Dryer
- AIR CONNECTIONS NPT INCHES3/4
- ALARM LIGHTSNo
- AUTO DRAINYes
Additional Information
- UNSPSC: 23201202
- Brand: Arrow Pneumatics Inc
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 22.00
- Package Width: 20.75
- Package Height: 22.50
- Package Weight: 81.00
Product info last updated on May 28, 2024 1:50pm UTC
Category: Compressed Air Treatment
