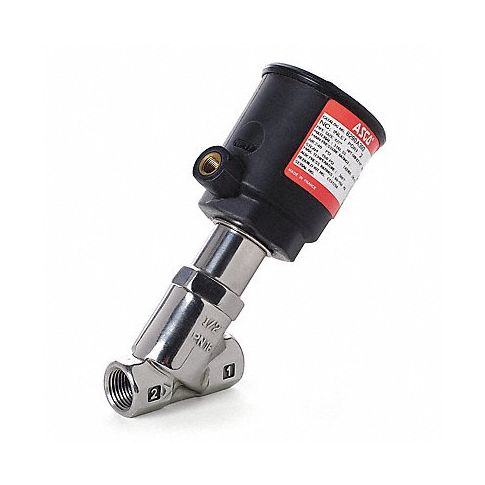

Angle Body Valve 1 CV 15.0 MPN:8290A386
Introducing our Angle Body Valve 1 CV 15.0 from Asco - designed for precision control in industrial processes requiring accurate fluid flow management. Featuring a compact, lightweight design with versatile 2-way/2-position valve configuration, this robust solution delivers dependable performance in harsh environments. Built to withstand the demands of air, inert gases, light slurries, oil, and water media, this Normally Closed Angle Body Piston Valve is ideal for applications such as process control, fluid power systems, and hydraulic circuits. Its rugged construction ensures long-lasting durability while minimizing maintenance requirements, making it an excellent choice for cost-conscious professionals. Upgrade your fluid management system with the Asco Angle Body Valve 1 CV 15.0 - unlock optimal performance today!
Top product features:
- Compact design for space-saving installations.
- Versatile 2-way/2-position valve configuration for precise control.
- Durable construction for long-lasting performance in harsh environments.
Top product applications:
- Industrial automation systems that require precise control of fluid flow.
- Process control systems for monitoring and adjusting fluids in manufacturing processes.
- Hydraulic circuits in mobile machinery such as cranes, excavators, or lifts.
Technical Specifications
- Item Angle Body Piston Valve
- Solenoid Valve Product Group Angle Body Piston Valve
- Valve Ways and Positions 2-Way/2-Position
- Valve Configuration Normally Closed
- Media - Valves Air, Inert Gases, Light Slurries, Oil, Water
- Pipe Size - Valves 1 in
- Min. Operating Pressure Differential 0 psi
- Max. Operating Pressure Differential Water 90 psi
- Max. Operating Pressure Differential Steam 90 psi
- Environmental Rating - Valves Indoor, Outdoor
- Coefficient of Volume 15.0
- Body Material - Valves Bronze
- Seal Material - Valves PTFE
- Orifice Dia. 1 in
- Ambient Temp. Range 15 Degrees to 140 Degrees F
- Max. Fluid Temp. 366 Degrees F
- Min. Pilot Pressure 60 psi
- Max. Pilot Pressure 150 psi
- Stem Material 431 Stainless Steel
- Disc Material Brass
- Operator Size 50 mm
- Center Line Pipe Center Size 5 3/4 in
- Viscosity 2,700 SUS
- Overall Length 2 1/2 in
- Overall Width 6 1/10 in
- Overall Height 6 1/2 in
- Actuator Pilot Solenoid Valve, Not Included
Manufacturer Details
- Manufacturer: Asco
- Condensed Mfg Number: 8290A386
- MPN: 8290A386
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481809050
- GDS Category Name: Angle Body Piston Valves
- GDS Family Name: Solenoid Valves and Coils
- GDS Segment Name: Plumbing
- UNSPSC: 40141630
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 30
- UNSPSC Commodity Name: Piston check valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
